SCOLMORE CLICK MODE
CMA023

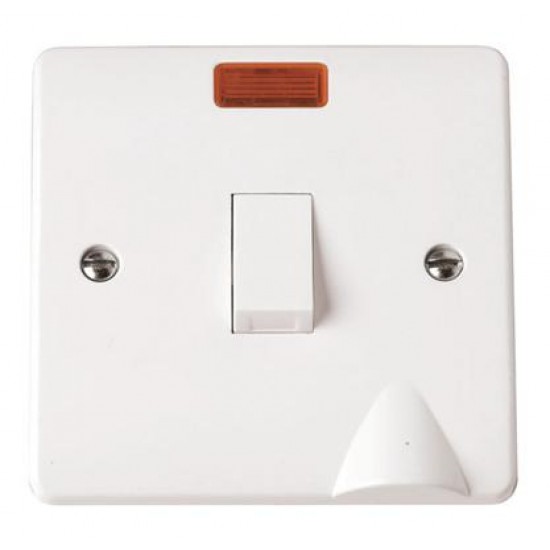

20A Double Pole Plate Switch With Neon & Optional Flex Outlet
General Information
Plate Dimensions (mm) 86 (W) x 86 (H) x 9.5 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Rounded Profile
Colour Polar White
Materials Front Plate & Rocker Switch: Urea Rear Housing: Urea
Neon Lens: Polycarbonate Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass Earth Strap: Mild Steel
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 20
Termination Type Screw
Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.8
Terminal Capacity - Solid (mm²) 3 x 2.5
Double Pole Switch Yes
Twin Earth Terminals Yes
Neon Indicator Yes Indicator Colour Orange
Flex Outlet Available Yes
Flex Outlet Location Bottom of Plate Flex Outlet Dimension (mm) Ø10
Minimum Back Box Depth (mm) 25
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 7
- Model: SCOCMA023
- SKU: SCOCMA023
- MPN: CMA023
