AICO

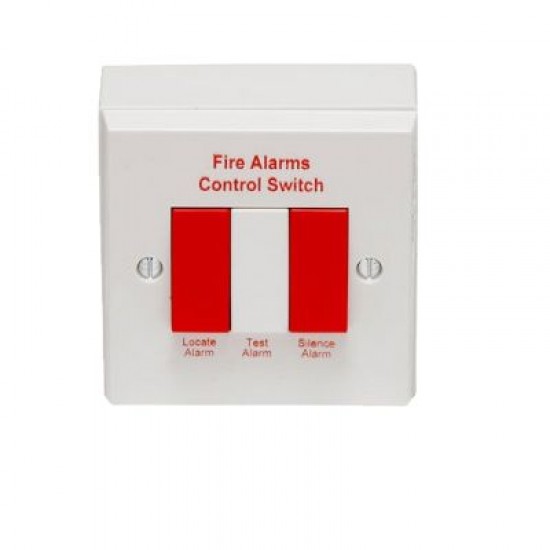

Ei1529RC Hard Wired Alarm Control Switch
Install as part of the system to get more control over your alarms
Mains powered
Hard wired interconnection
Test, Locate and Silence
Compatible with 3000, Ei2110e Multi-Sensor Fire Alarm, 160e Series alarms, 140e Series alarms and hard wired interconnected Carbon Monoxide alarms
Technical Specification
Compiles with electrical safety requirements: EN61000-6-1:2007 Et EN61000-6-2:2005 (EMC Directive) and EN60065:2001 + A12:2011 (Low voltage directive).
Carries the CE mark to indicate conformance to
Low Voltage and Electromagnetic Compatibility Directives.
Wall mounted for ease of use – can be fixed with surface mount box supplied, or will fit a standard recessed box (not supplied).
Suitable for siting at any convenient point in the property. Up to 4 x
Ei1529RC switches can be installed in a hardwired system along with a maximum of 16 x 3000, 2110e, 160e or 140RC
Series smoke and heat alarms or 261ENRC Carbon Monoxide alarms.
The unit incorporates 3 switches marked ‘Locate’, ‘Test’ and ‘Hush’. These provide control features as detailed below and a mains check function as detailed below.
Easily installed via a 3 wire connection of live,
Neutral and Interconnect/Control (as standard smoke/heat alarm wiring).
Dimensions: 90mm x 90mm x 40mm deep.
Weight inclusive of packaging: 240g.
Manufactured in Ireland.
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: AICEI1529RC
- SKU: AICEI1529RC
- MPN: EI1529RC
