ANSELL
APRIP/1
Prism Pro CCT Fire Rated Downlight Dual Wattage
IP65 dimmable LED Fire Rated Downlight suitable for residential and hospitality applications
New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
Low profile design and remote driver allows installation into shallow ceiling voids
Fully tested to meet Part C (moisture), Part E (acoustic) and Part L (energy) of Building Regulations
CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire

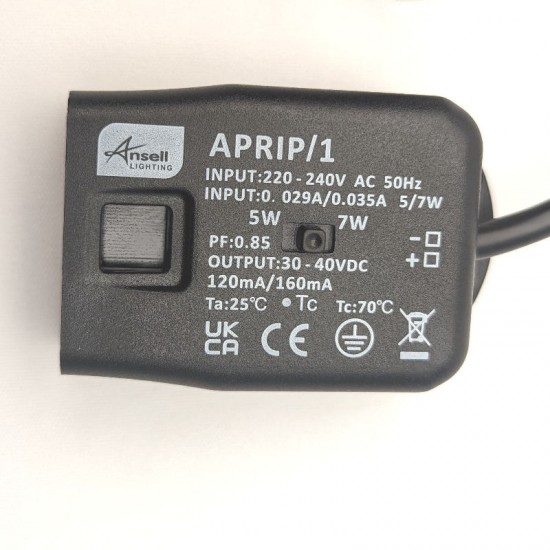

Remote driver with 2x1.5mm? + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Wide 65° beam angle for increased light distribution
Wattage 5W - 7W
Lumens Delivered 560lm - 740lm
Lm/W 110lm/W - 105lm/W
Beam Angle 65
CRI 80
CCT 2700/3000/4000/6000K
Input 220/240V
Operating Temp -20°C - 35°C
SDCM 6
UGR 25
Cut-Out Size 73mm
Product Weight without Packaging 0.285 kg
Light Source LED
Colour / Finish White
Fire Rated Yes
IP Rating IP65
Class Protection 1
Internal / External Internal
Surface / Recessed / Suspended Recessed
Lumen Depreciation L70 60,000h
Warranty (Years) 5
CE Mark Yes

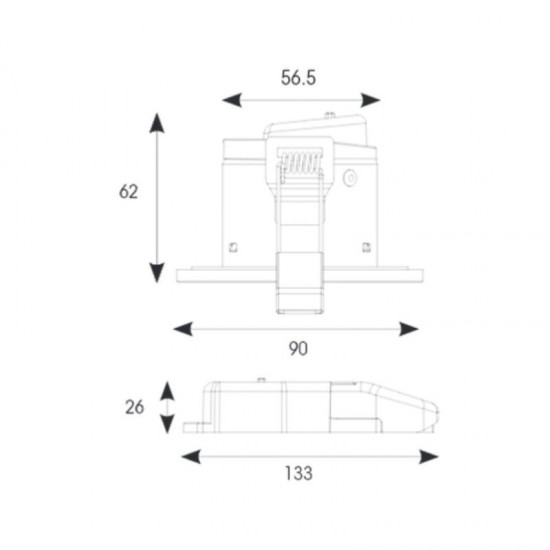

Diameter 90 mm
Height 62 mm
Any orders below £75 subject to £6.00 carriage
- Stock: 5
- Model: ANSAPRIP/1
- SKU: ANSAPRIP/1
- MPN: APRIP/1
