CLICK SCOLMORE
MD9020

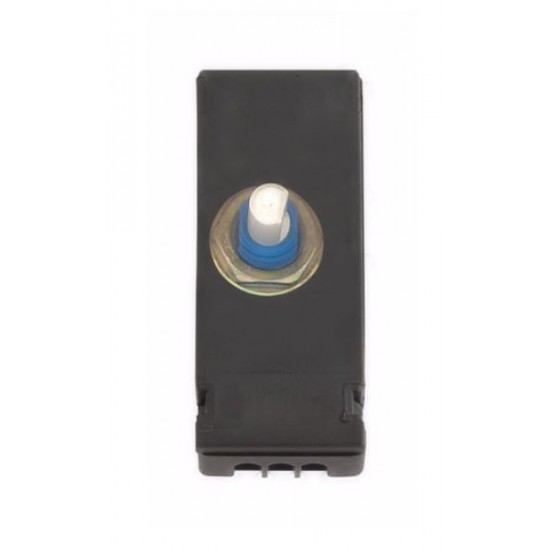

MINIGRID 250W 2 Way Dimmer Module
General Information
Dimensions (mm) 25.5 (W) x 67 (H) x 23.2 (D)
Materials Body: Nylon Terminals: Brass
Terminal Screws: Brass PCB: Multiple Electronic Components
Rated Voltage (V~) (Ue) 230 Frequency (Hz) 50
Load Rating (W) 60 - 250
Load Rating Comments Suitable For Resistive & Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø2.8 Terminal Torque Value (Nm) 0.2
Terminal Capacity - Solid (mm²) 2 x 1.5
2 Way Switch Yes
Dimmer Technology Type Leading Edge
Dimmer Load Type Resistive & Inductive
Minimum Back Box Depth (mm) 25 (35 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 1
Standards BS EN 60669-1
BS EN 55015
BS EN 61000-3-2
BS EN 61000-3-3
Additional Information
We recommend using branded tungsten halogen lamps that incorporate internal fuses. The use of
inferior, non-branded lamps may require the nominal rating of the dimmer to be reduced.
When dimming low voltage lighting, this dimmer must be used with dimmable, leading edge transformers only. Always check compatibility prior to installation and if in doubt, seek advice with transformer manufacturer.
We DO NOT recommend mixing electronic and magnetic transformers on the same dimmer switch.
Due to the housing height, the module cannot be mounted directly above another on a multi-tier mounting plate.
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: SCOMD9020
- SKU: SCOMD9020
- MPN: MD9020
