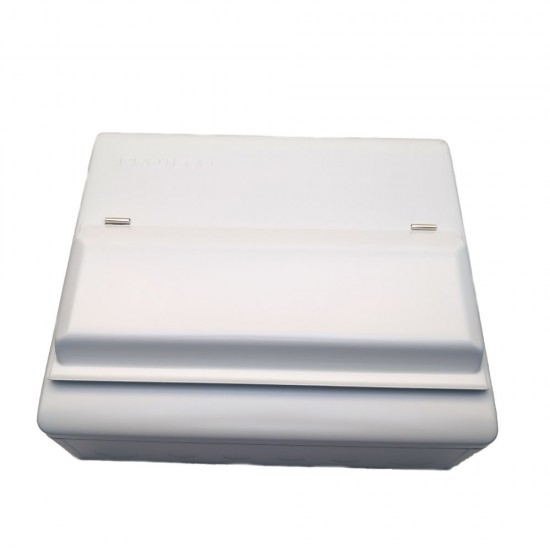

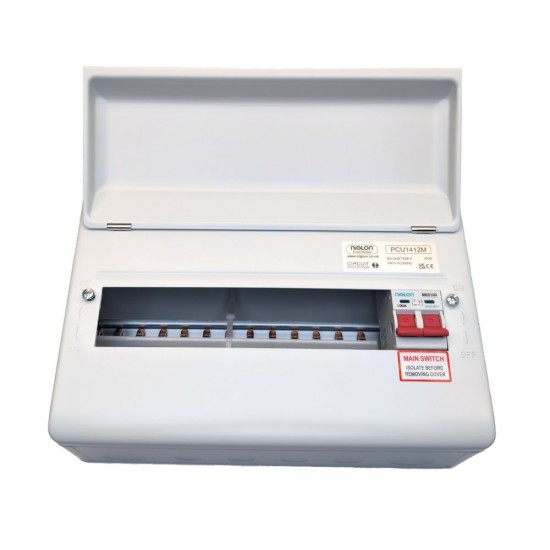

Niglon Protego 14 Modular 12 Way 100A Isolator Metal Consumer Unit
Protego 14 Modular 12 Way 100A Isolator Metal Consumer Unit
Metal Board: Constructed of 1.2mm Steel, with curved edges
Increased Board Height 260mm: More room for cabling on 10-22 way boards
Variable Knockouts: 20+32 on the top and bottom, 40mm on the sides
Short Turn Cover Screws, provides easy secure fixing when assembling cover after completion of installation.
Comes supplied with edging strips & 32mm tail gland.
Technical Specifications
Part No PCU1412M
Material Composition Steel (Power Coated)
Paint Colour RAL 9010
Configurations 14 Modular 12 Free Ways 100A DP Isolator
Rated Operational Voltage (Un/Ue) 230V AC
Rated Current if Assembley (InA) 100A
Rated Frequency 50Hz
Main Switch Terminal Capacity 35mm²
IP Rating (Ingress Protection) IP20
IK Rating (Impact Protection) IK05
Dimensions 260 (H) x 307 (W) x 110mm (D)
Standards BS7671:2018, BS EN61439-3
100A Mains Isolator Manufactured to EN60947:3
Certification Semko, CE, UKCA
Any orders below £75 subject to £6.00 carriage
- Stock: 5
- Model: NIGPCU1412M
- SKU: NIGPCU1412M
- MPN: PCU1412M
