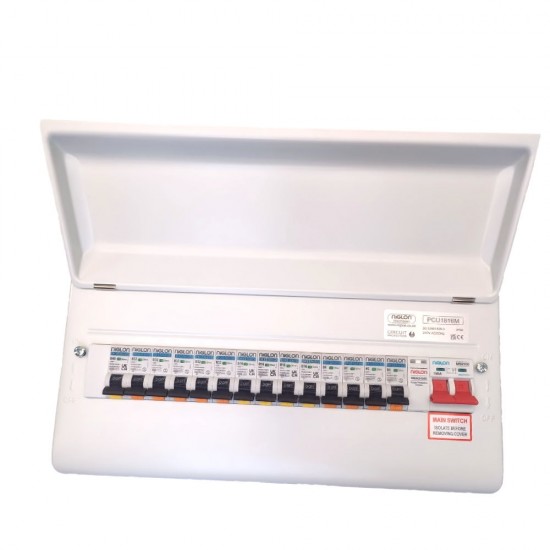

Niglon Protego 18 Modular 16 Way 100A Isolator Metal Consumer Unit
C/w Surge protection + 14 x Rcbo's (4x6a,4x16a,5x32a,1x40a)
Protego 18 Modular 16 Way 100A Isolator Metal Consumer Unit
Metal Board: Constructed of 1.2mm Steel, with curved edges
Increased Board Height 260mm: More room for cabling on 10-22 way boards
Variable Knockouts: 20+32 on the top and bottom, 40mm on the sides
Short Turn Cover Screws, provides easy secure fixing when assembling cover after completion of installation.
Comes supplied with edging strips & 32mm tail gland.
Technical Specifications
Part No PCU1816M
Material Composition Steel (Power Coated)
Paint Colour RAL 9010
Configurations 18 Modular 16 Free Ways 100A DP Isolator
Rated Operational Voltage (Un/Ue) 230V AC
Rated Current if Assembley (InA) 100A
Rated Frequency 50Hz
Main Switch Terminal Capacity 35mm²
IP Rating (Ingress Protection) IP20
IK Rating (Impact Protection) IK05
Dimensions 260 (H) x 379 (W) x 110mm (D)
Standards BS7671:2018, BS EN61439-3
100A Mains Isolator Manufactured to EN60947:3
Certification Semko, CE, UKCA
NSA2-240 Type 2 Surge Protection Kit -
Compact Pluggable c/w neutral & earth links Circuit Protection 18th Edition COMPLIANT Technical Drawing 8 45 81 18 FINISH: MATERIAL: DESCRIPTION: See Part Drawing See Part Drawing TYPE 2 SPTYPE 2 SPCUSTOMER/PROJECT: Niglon Ltd, Unit1, Highlands Park, Stirling Rd, Solihull, B90 4NE. Tl01217111990008KUNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN MILLIMETERS TOLERANCES: X: X.X: ANGULAR: 1.0 X.XX: 0.25 0.13 1.0 Wiring Diagram Change to Suitable for Earthing Type TN-C, TN-C-S, IT & TT Type Type 2 Rated Working voltage of Uo 230V Max. discharge current 8/20µs (kA) 40kA Nominal Discharge current 8/20µs (kA) 20kA Max. Continuous operating voltage 275 V~ Voltage protection level (kV) 335 Vac withstand Supplied with cables Yes IP Rating IP20 Material PA66 Local indicator Green indicates normal state and red indicates failure Flammability Rating Comply with UL94V-0 Remote Signaller Yes Busbar Mounting Yes Relevant Standards BS EN 61643-11
Any orders below £75 subject to £6.00 carriage
- Stock: In Stock
- Model: NIGPCU1816MSRCBO
- SKU: NIGPCU1816MSRCBO
- MPN: PCU1816MSRCBO
