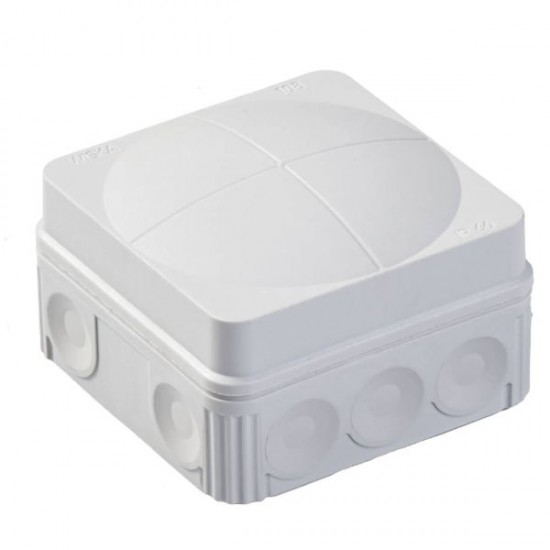

The Wiska Combi 108/5 Grey is an ideal junction box for inside and outside applications. With their unique design and highest quality, they have met the most demanding installer requirements for years: The Combi 308/5 Grey junction box series is an original in every respect.
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66
Glow wire test 750 °C
Voltage 400 V
Rated current / A (Terminal) 24 A
Rated cross section 2,5 mm²
Terminals/poles 5-pole, 2,5mm²
Fixing 2 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 14 mm
External dimensions LxWxH 76 x 76 x 51mm
Using for cable gland Using for cable gland
Product Color RAL 7035
WISKA-Order no. 10060523
Type COMBI 108/5 LG
Packing unit 10
ETIM-Classification EC002600
EAN number 4007685605236
Tariff number 85369010
Remarks:
Equipment:
• 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
• inclusive terminal block 5-poles, 2,5mm²
Fixing:
• By two internal openings outside of the sealing area
