SCOLMORE CLICK
PRC009

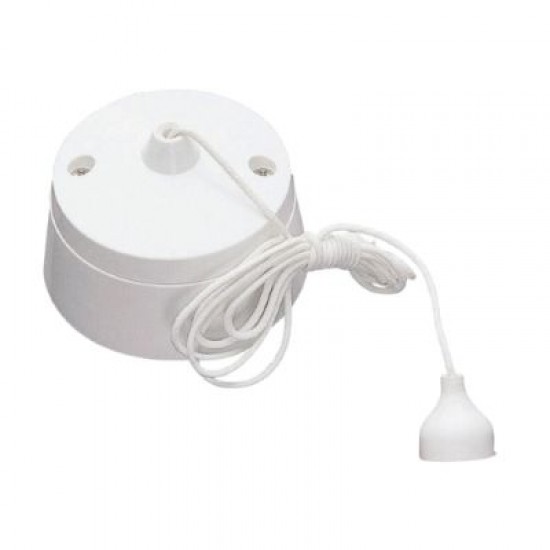

10AX 2 Way Pull Cord Switch
General Information
Dimensions (mm) 76 (Dia) x 51.5
Style Round
Colour Polar White
Materials Cover & Pattress: Urea Terminal Housing: Urea
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Internal Busbars: Formed Pressed Brass Earth Strap: Mild Steel
Pull Bell: Urea
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Inductive Load Rating (AX) 10
Load Rating Comments Suitable for Fluorescent or Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø4 Terminal Torque Value (Nm) 0.4
Terminal Capacity - Solid (mm²) 2 x 1.5 or 1 x 2.5
2 Way Switch Yes
Twin Earth Terminals No
Supplied Back Box Depth (mm) Pattress Supplied
Back Box Knockouts - Total (mm) 4 x 12 x 9 and 1 x 17 x 23
Back Box Knockouts - Top(mm) None Back Box Knockouts - Sides(mm) 4x12x9
Back Box Knockouts - Bottom(mm)None Back Box Knockouts - Rear(mm)1x17x23
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: Pre-Order
- Model: SCOPRC009
- SKU: SCOPRC009
- MPN: PRC009
