SCOLMORE CLICK
PRW211

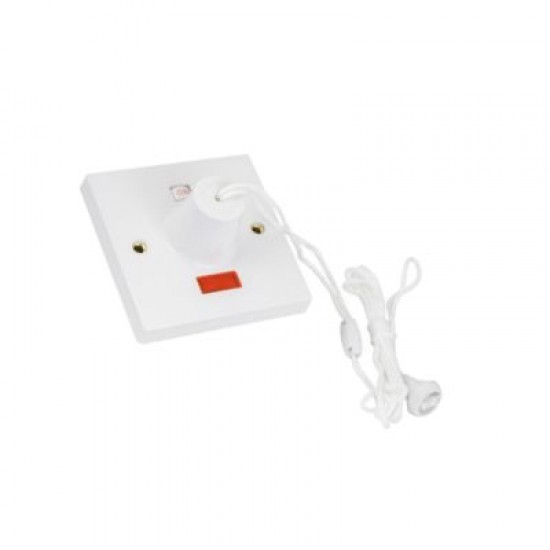

50A Double Pole Pull Cord Switch With Mechanical ‘On/Off’ & Neon
General Information
Dimensions (mm) 86 (W) x 86 (H) x 43 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Round
Colour Polar White
Materials Front Plate: Urea Terminal Housing: Urea
Neon Lens: Polycarbonate Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Internal Busbars: Formed Pressed Brass
Earth Strap: Mild Steel Pull Bell: Urea
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 50
Termination Type Screw
Twin Screw Terminals Yes
Terminal Size (mm) Ø6.7 Terminal Torque Value (Nm) 2.5
Terminal Capacity - Solid (mm²) 1 x 25
Double Pole Switch Yes
Twin Earth Terminals Yes
Neon Indicator Yes Indicator Colour Orange
Mechanical Indicator Yes
Mechanical Indicator Type On/Off Rotating Legend
Minimum Back Box Depth (mm) 47
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 5
- Model: SCOPRW211
- SKU: SCOPRW211
- MPN: PRW211
