SCOLMORE CLICK MODE
CMA025

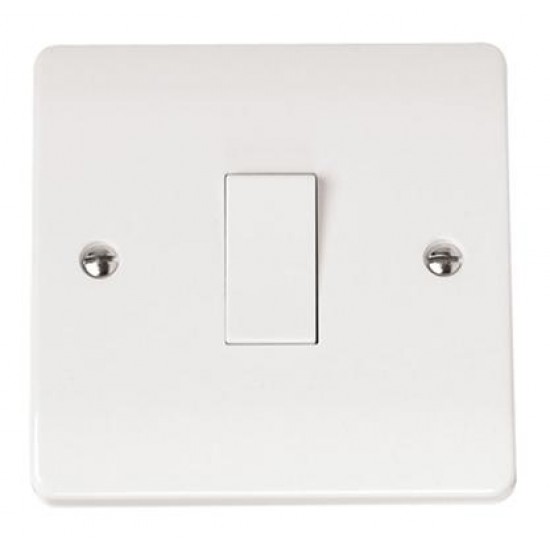

10AX 1 Gang Intermediate Plate Switch
General Information
Plate Dimensions (mm) 86 (W) x 86 (H) x 9.5 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
MiniGrid Plate (Gang) 1
MiniGrid Single Width Module Quantity 1
MiniGrid Double Width Module Quantity 0
Style Rounded Profile
Colour Polar White
Materials Front Plate & Rocker Switch: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Inductive Load Rating (AX) 10
Load Rating Comments Suitable for Fluorescent or Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.5
Terminal Capacity - Solid (mm²) 4 x 1.5 or 2 x 2.5
Modular Rocker Switches Yes
Intermediate Switch Yes
Minimum Back Box Depth (mm) 16
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: SCOCMA025
- SKU: SCOCMA025
- MPN: CMA025
