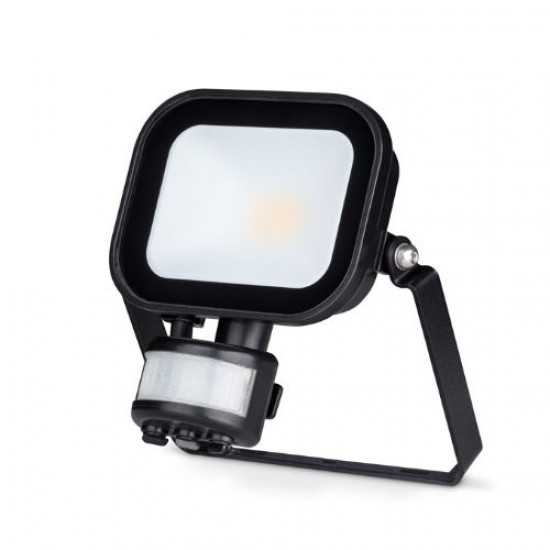

Niteflood™ LED Floodlight 10W IP65 4000K Black +PIR
Features & Benefits
Up to 112 LpcW
IP65 protection against dust and moisture
60° angled bracket for ease of installation
Breather gland incorporated to protect against condensation
Opal glass for reduced glare
Supplied pre-wired with 800mm flex
Driverless technology
PIR versions, with manual override available
This product contains a light source of energy efficiency class E
General Information
Voltage Rating 220-240
Operating Frequency Hz 50/60Hz
Luminaire Circuit Wattage 10
Class I
Power Factor Correction 0.8
LED Life (Hours)* 54000
Actual Lumen Output 1000
Lumens Per Circuit Watt 100
Standard Deviation Colour Matching - SDCM <5
Colour Rendering Index 80-89
CRI: Ra 83
Colour Temperature 4000
Detection Distance 5-10m
Detection Motion Speed 0.6~1.5m/s
Detection Range 180°
Installation Height 1.8-2.5m
Power Consumption <0.9W
Time Delay 10s to 7mins
Mounting Wall Mount
Environment Exterior
Product Group LED Floodlights
Colour Finish Black
Product Shape Rectangular
Product Range Niteflood®
Overall Dimensions 138.1 x 125.6 x 96.3
Product Weight(kg) 0.346
Light Source LED
Recommended product location Exterior Wall Mount for security lighting
Method of fix Screws/Rawl plugs
Fixing centres See profile drawing
IP Rating IP65
Origin of manufacturer China
Warranty 3 Year Warranty (See Website for terms and conditions)
Mounting height 2.5m max
Driver manufacturer No driver, mains LED Chips
LED manufacturer/type Smalite 2835
