SCOLMORE CLICK
CMA146

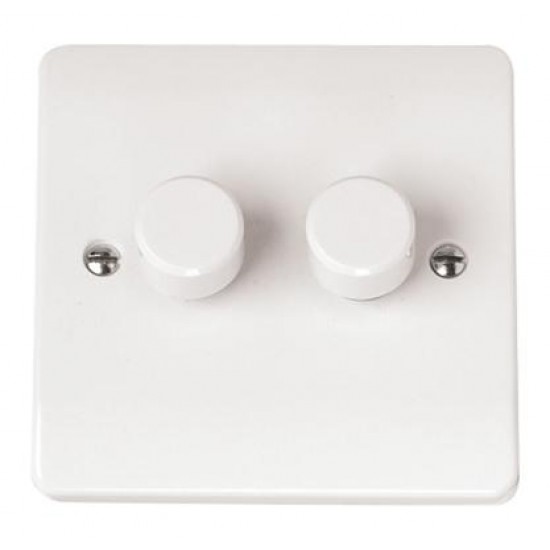

2 Gang 2 Way 250Va Dimmer Switch
General Information
Plate Dimensions (mm) 86 (W) x 86 (H) x 9.5 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Rounded Profile
Finish Polar White
Materials Front Plate: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
PCB: Mixed Components
Anti Microbial Certified Yes
Rated Voltage (V~) (Ue) 250 Frequency (Hz) 50/60
Load Rating (W) 40 - 250
Load Rating Comments Suitable For Resistive / Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.4
Terminal Capacity - Solid (mm²) 2 x 1.5
2 Way Switch Yes
Switch Control Type Press - ON/OFF, Rotate - Dim
Dimmer Technology Type Leading Edge
Dimmer Load Type Resistive & Inductive
Minimum Back Box Depth (mm) 25
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20 Warranty - Electronics (Years) 1
Standards BS EN 60669-1, BS EN 55015, BS EN 61000-3-2, BS EN 61000-3-3
