SCOLMORE CLICK
CL022

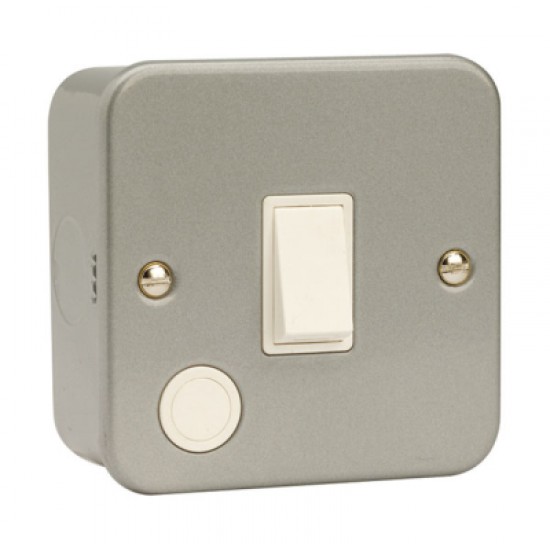

20A Double Pole Plate Switch With Optional Flex Outlet
General Information
Dimensions (mm) 80 (W) x 80 (H) x 42 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Metal Clad
Colour Grey
Materials Front Plate & Mounting Box:
Electrophoretically Coated Steel Insert, Switch & Rear Housing: Urea
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Earth Strap: Mild Steel
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 20
Termination Type Screw
Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.8
Terminal Capacity - Solid (mm²) 3 x 2.5
Double Pole Switch Yes
Twin Earth Terminals Yes
Flex Outlet Available Yes
Flex Outlet Location Front of Plate Flex Outlet Dimension (mm) Ø10
Supplied Back Box Depth (mm) 40
Back Box Knockouts - Total (mm) 5 x Ø20
Back Box Knockouts - Top (mm) 2 x Ø20 Back Box Knockouts - Sides (mm) 1 x Ø20
Back Box Knockouts - Bottom (mm) 1 x Ø20 Back Box Knockouts - Rear (mm) None
Back Box Earth Terminal Supplied Yes
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: SCOCL022
- SKU: SCOCL022
- MPN: CL022
