SCOLMORE CLICK MODE
CMA215

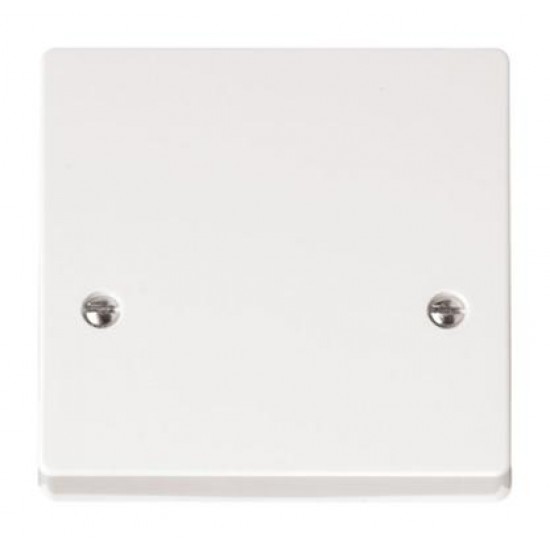

45A 1 Gang Cooker Connection Plate
General Information
Plate Dimensions (mm) 86 (W) x 86 (H) x 22.5 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Rounded Profile
Colour Polar White
Materials Front Plate: Urea Earthing Yoke: Mild Steel
Terminal Housing: Urea Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 45
Termination Type Screw
Terminal Size (mm) Ø4.6 Terminal Torque Value (Nm) 0.8
Terminal Capacity - Solid (mm²) 2 x 10
Flex Outlet Available Yes
Flex Outlet Location Bottom of Plate Flex Outlet Dimension (mm) 20 x 21
Minimum Back Box Depth (mm) 35
Cable Restraint Supplied Yes
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS 5733
