SCOLMORE CLICK MODE
CMA204

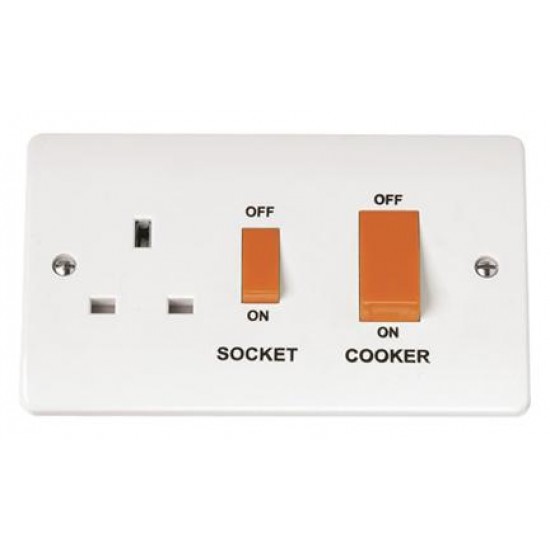

50A 2 Gang Double Pole Switch With 13A Double Pole Switched Socket Outlet
General Information
Plate Dimensions (mm) 146 (W) x 86 (H) x 9.5 (D)
Plate Fixing Centres - Horizontal (mm) 120.6
Style Rounded Profile
Colour Polar White
Materials Front Plate & Rocker Switch: Urea Rear Housing: Urea
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Earth Strap: Mild Steel
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 45
Termination Type Screw
Terminal Size (mm) Ø6 Terminal Torque Value (Nm) 2.5
Terminal Capacity - Solid (mm²) 1 x 16
Double Pole Switch Yes
Twin Earth Terminals Yes
Product Marking On, Off, Socket, Cooker
Minimum Back Box Depth (mm) 35
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS 4177
