SCOLMORE CLICK MODE
CMA038

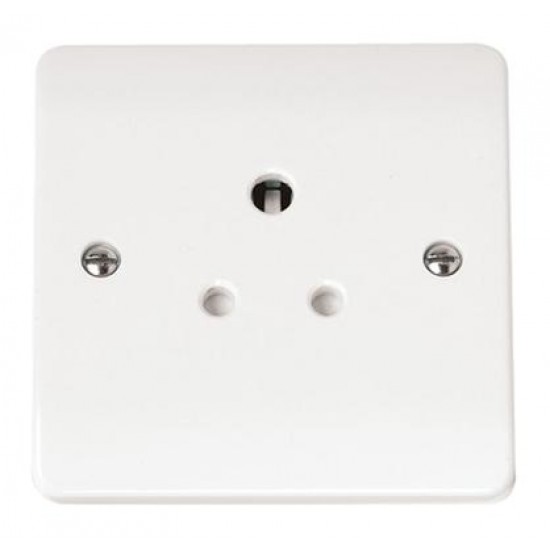

5A Round Pin Socket Outlet
General Information
Plate Dimensions (mm) 86 (W) x 86 (H) x 9.5 (D)
Plate Fixing Centres - Horizontal (mm) 60.3
Style Rounded Profile
Colour Polar White
Materials Front Plate: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Internal Busbars: Formed Pressed Brass Earth Strap: Mild Steel
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 5
Termination Type Screw
Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.2
Terminal Capacity - Solid (mm²) 4 x 1.5 or 3 x 2.5
Switched No
Twin Earth Terminals No
Minimum Back Box Depth (mm) 25
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 25
Standards BS 546
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: SCOCMA038
- SKU: SCOCMA038
- MPN: CMA038
