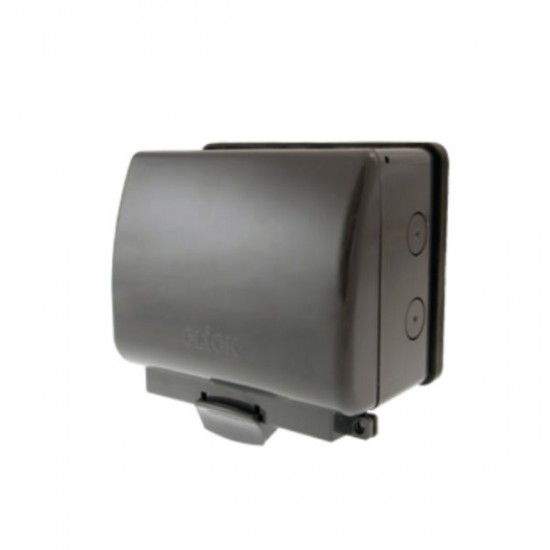

OA036AG 2 Gang 13A DP IP66 Weatherproof Switched Socket Unit
Ensure that the mains supply is isolated before commencing installation and refer to the circuit diagram with the relevant product. Bare earth cables must always be covered with appropriate sleeving and wired to the earth terminal. All urea moulded accessories are manufactured using Urea Formaldehyde, which has similar inherent properties to antimicrobial additives that inhibit the growth of infectious diseases. All products have been independently tested and achieved a 99.9% kill rate across all four types of the strains of bacteria - MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae.
General Information
Dimensions 158mm (W) x 158mm (H) x 90mm (D)
External Finish Anthracite Grey
Socket Finish Anthracite Grey With White Switches
Materials Cover, Housing & Clip: Polycarbonate
Seal & Gasket: Rubber
Accessory Plate & Housing: Urea
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Earth Strap: Mild Steel
Maximum Voltage 250V~ 50Hz
Load Rating 13A
Accessory Fixing Centres 120.6mm
Terminal Size 5mmø
Terminal Torque 2.5Nm
Terminal Capacity 3 x 2.5mm2 or 2 x 4mm2
Double Pole Yes
Ingress Protection IP66
Termination Type Screw
Back Box Knockouts 7 x 20mmØ
Operational Temperature -5°C to +40°C
Warranty 5 Years
Standards Standards BS 1363-2: 2016 +A1: 2018 BS EN 60529:1992+A2:2013 (Sections 13 & 14)
