CAT6

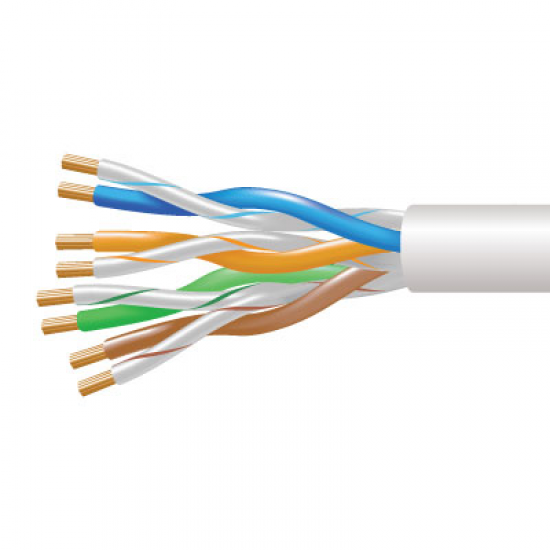

Category 6 Solid UTP PVC Eca Cable Pure copper cores 305M
Cat 6 UTP PVC Cable is designed for high speed LANs including Gigabit Ethernet applications. The cable is supplied in easy to use boxes and is available with grey PVC outer sheath.
General Information
Inner Conductor 23 AWG plain copper
Insulation High density polyethylene
Construction 4 twisted pairs cabled together with spline
Colour Code
Pair 1: White/Blue-Blue/White
Pair 2: White/Orange-Orange/White
Pair 3: White/Green-Green/White
Pair 4: White/Brown-Brown/White
Sheath PVC
RAL Colour Grey - 7044
Overall Diameter 6.1mm +/- 0.3 mm
Min. Bending Radius 25 mm
Impedance 100 Ohm +/- 15 Ohm
Conforms to ANSI/TIA-568-C, ISO 11801
CENELEC EN 50173
Operating Temperature Range -20°C to +60°C
(Cable will only be delivered in the Kirklees area by our own vehicle, or can be collected from our Trade-Counter. For Deliveries outside Kirklees please ring sales for a Quote on carriage before placing order)
Any orders below £75 subject to £6.00 carriage
- Stock: 4
- Model: CABCAT6
- SKU: CABCAT6
- MPN: 001-003-005-00S
