EUROPA
LE1-D253U7

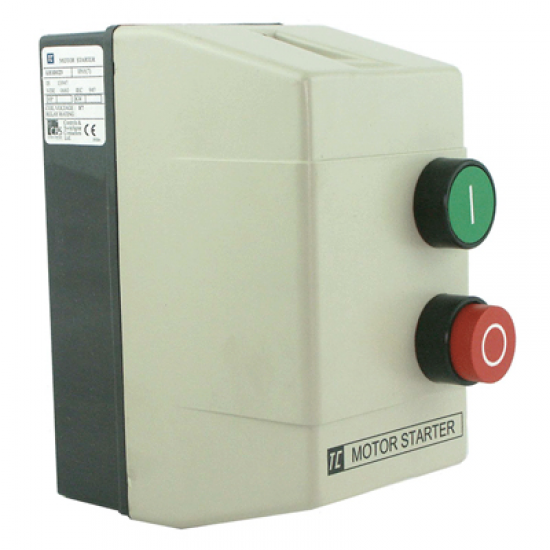

Direct on line starter in a plastic enclosure with start and stop button.
Used to switch a single or three phase induction motor rated up to 11kW at 415V.
Note overload needs to be ordered separately.
Type: Enclosed Stop and Start Button
Overload: Not Included
Maximum rated current @ 415V AC3: 25A
Maximum power rating @ 415V: 11Kw
Coil voltage: 240V AC
Enclosure Ingress Protection Rating: IP65
Main pole terminal capacity: 10mm2
Maximum rated operational voltage: 690V
Maximum thermal current Ith <40degC: 40A
Maximum operating rate: 3600 operations per hour
Heat dissipation AC: 2.5 to 3.5 W
Mechanical life 50Hz / 60Hz: 1.5 x 107
Coil consumption inrush: 100VA
Coil consumption sealed: 8.5VA
Height: 185mm
Width: 101mm
Depth: 155mm
Weight: 1.203Kg
Any orders below £75 subject to £6.00 carriage
- Stock: 1
- Model: EURLE1-D253U7
- SKU: LE1-D253U7
- MPN: LE1-D253U7
