EUROPA

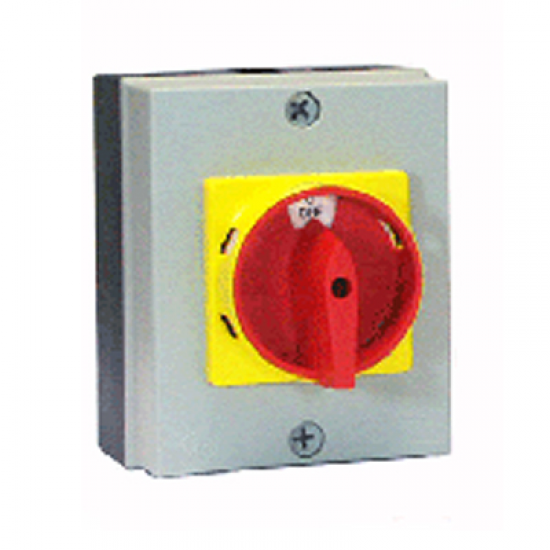

LB204P
AC-21 20A IP65 Enclosed Rotary Switch Disconnectors
European Standard IEC & EN 60947-1 and 3
IP65, 20mm cable entries
Robust polycarbonate enclosure
UV resistant
Enclosure glow wire flammability rating 960 C
Halogen free
Lower smoke generation
Padlockable in the OFF position
AC-21 Switch Rating
H:125 x W:100 x D:74mm
Rated operational voltage Ue
IEC & EN Volts V 690
UL Volts V 600
Main switch: Isolating voltage up to Volts V 750
Rated impulse withstand voltage Uimp Volts kV 6
Rated uninterrupted current Iu Amps A 16
Rated operational current Ie
IEC & EN
AC-22A Up to 690V A 16
AC-21A Up to 690V A 20
AC-1 Up to 690V A 20
Rated operational power AC-23A (50-60Hz)
IEC & EN 3 Phase
220-240V kW 7.5
380 - 440V kW 11
500 - 690V kW 15
Rated operational power AC-3 (50-60Hz)
IEC & EN 3 Phase
220-240V kW 4
440V kW 5.5
690V kW 11
Short Circuit Capacity (IEC)
Max fuse size (Type gl) Amps A 20
Rated Fused short circuit current Amps kA 5
Terminal Specification
Single/ Multple strand wire
Min-mm2 2.5
Max-mm2 10
Fine strand with sleeve
Min-mm2 0.75
Max-mm2 6
American wire gauge AWG 10
Recommended Tightening Torque Nm 1.7
Any orders below £75 subject to £6.00 carriage
- Stock: 27
- Model: GEWGW70433
- SKU: GEWGW70433
- MPN: LB204P
