EUROPA
TC1-D3201P7

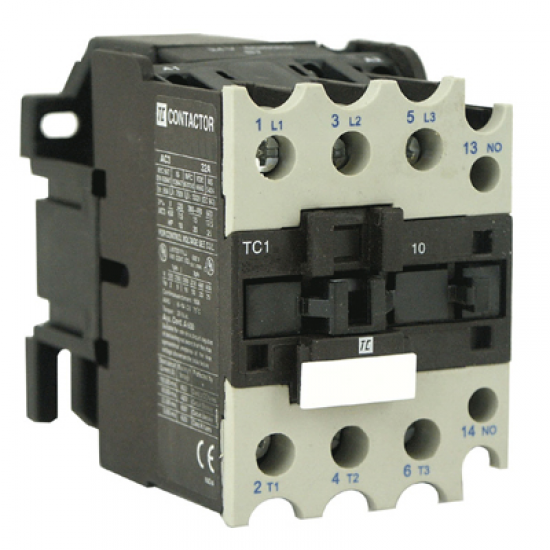

TC1 15kW 32A AC3 (50A AC1) 3 Pole Contactor 240v
Simple operation
Fast switching
Low power consumption = cost saving
Reduced maintenance costs
Long life
Compliant with standard regulations
Noise reduction (no vibration or noise)
Maximum rated current for motor control (3 phase 440V, 50-60Hz, for AC3 Duty) 32A
Maximum standard power rating for motor control as AC3 Duty 0=55°C, 415V Kw / hp 15 / 20
EN 60947-4-1
3 phase AC3 230V HP 25 460/480V HP 60 575/600V HP 10
Mounting position (w.r.t normal vertical mounting plane)* ± 30 °
Maximum thermal current Ith (0 = 40°C) 50A
Maximum Operating Rate AC/DC 3600 (operations / hr)
Average Coil Consumption (inrush / sealed) 50 Hz 60 / 7 VA 90 / 7.5VA
Heat dissipation at AC 2.5 to 3.5W
Mechanical Life (in millions of operations) TC1 50 or 60 Hz 16 / 60 Hz TP1 12
Power contact terminal capacity mm² 10
Recommended Tightening Torque 1.2Nm
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: EURTC1-D3201P7
- SKU: EURTC1-D3201P7
- MPN: TC1-D3201P7
