SELECTRIC
LG305

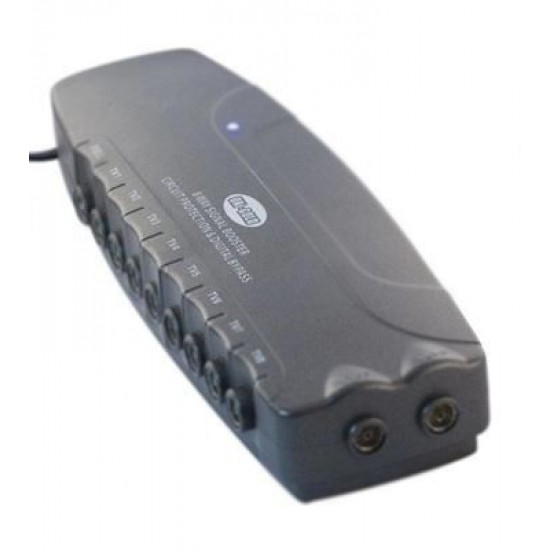

8 Way Booster Box with Digital Bypass & Circuit Protection
General Information
Size 273mm (W) x 89mm (H) x 48mm (D)
Range Selectric OXi-GOLD - Audio, Visual & Digital Accessories
Colour Black
Material Fire Retardant ABS Body (Acrylonitrile Butadiene Styrene)
Included Instructions & fixing kit
Weight 0.687kg
Inner Carton Quantity 1
Inner Carton Weight 0.757kg
Barcode 5025117986813
Commodity Code 852910
Standards BS 3041-7, EN 55013, EN 55020 & EN 61000-3
Frequency VHF 47-230MHz - UHF 470-860MHz - FM 88-108MHz
Gain - Full Output 15dB
Gain - Per Port 12-15dB
Noise < =3.5dB
Isolation Loss 23dB
Impedence 75O
Voltage 220-240V
Line Power 12V 25mA
Hertz 50Hz
Rated Power 3.5 Watt
Wall / Surface Mounting? Yes - Mounting Holes: 124mm apart
Notes
Link up to 8 additional TV sets
Complete with fitted 1M power cable & 3 amp tough plug
For indoor use only and should be used in accordance with the instructions provided
CE Marked
Designed to ensure the transfer of superior quality digital signals between all your home entertainment systems
Booster has a built-in short circuit protection on each individual output
With integrated by-pass, designed to allow the user to control SKY™ digital receivers from a second TV
without additional equipment apart from a Link device and a SKY™ or compatible universal remote control
For indoor use only
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: MISCTVAMPLIFIER8W
- SKU: MISCTVAMPLIFIER8W
- MPN: 27824BMG
