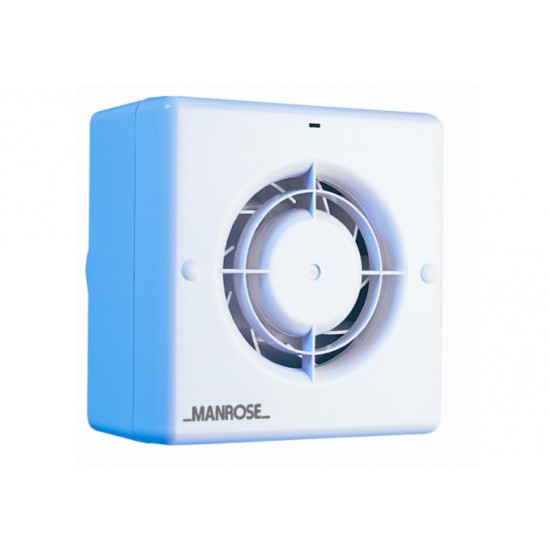

MANROSE
CF100H 4"
Centrifugal 100mm Humidity control Fan
Humidity control which is adjustable between 40 and 95%RH Complete with adjustable integral timer (1-20 mins)
The CF100 centrifugal fans use the latest technology
to provide extremely powerful, yet very quiet and vibration free
ventilation. The CF100 range are designed for bathrooms,
toilets, cloakrooms and utility rooms.
Designed to move air over long distances, these units will give
maximum performance even against pressures caused by long
lengths of ducting and resistance by grilles.
All models are fitted with a built-in spring operated non-return flap into
the discharge spigot to stop backdraughts.
The CF100 has an extract rate of 90m3/hr 25 litres per second/hr 31 litres per second.
The units are all manufactured using high impact ABS thermoplastics
for strength and durability, aesthetics and easy cleaning.
Power to the CF100 range is provided by a single phase induction
motor with pre-oiled bearings for a long, maintenance-free life.
Designed to comply with the Building Regulations on Ventilation (F1).
Additional Information
Fan speed : 1600 r.p.m.
Sound volume : 42.0 dB(A).
Maximum operating temperature: 40°C.
Maximum airflow l/s: 25 (90m3 /hr)
Power consumption (Watts): 19.
Specific Fan Power (W/l/s): 0.65.
IP Rating: IP44
Maximum duct length: 9m.
Front Facia: 163mm x 163mm
Facia Depth: 90mm
Spigot Diameter: 98mmø
Spigot Depth: 65mm
