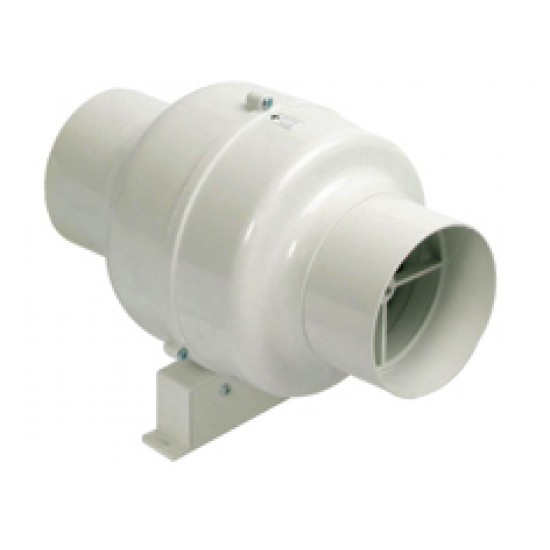

MANROSE
CFD200S 4"
Centrifugal Inline 100mm Standard Fan
Providing solutions for a wide range of domestic and commercial applications, the CFD200 in-line fan has been designed for use with
suspended ceilings, A spring operated, non-return flap is
built into the discharge spigot to prevent backdraughts.
Powerful, yet quiet and unobtrusive, the CFD200 units
have extract rates of 110m3/hr 31 litres per second.
The MAN series is suitable for a wide range of applications
including bathrooms, toilets, shower rooms and utility rooms.
The MAN series is fitted with backward curved centrifugal
impellers for a large airflow against the high pressures
caused by longer lengths of ducting and resistance by grilles.
There is an extensive range of ventilation accessories
available to cover most in-line ducting systems.
The CFD200 units are manufactured using high impact ABS thermoplastics
for strength and durability, aesthetics and easy cleaning.
Available with an integral mounting bracket. Designed to comply with the Building Regulations on Ventilation (F1).
The CFD200 range is powered by a single phase induction
motor with pre-oiled bearings for a long, maintenance-free
life.
Additional Information
Fan speed : 1400 r.p.m.
Sound volume : 45.0 dB(A).
Maximum operating temperature: 40°C.
Maximum airflow l/s: 31 (110m3 /hr)
Power consumption (Watts): 17.
Maximum pressure 120p.a
Specific Fan Power (W/l/s): 0.65
IP Rating: IP44
Maximum duct length: 9m.
Front Facia: 180mmW x 175mmH
Facia Depth: N/A
Spigot Diameter: 100mmø
Spigot Depth: N/A
