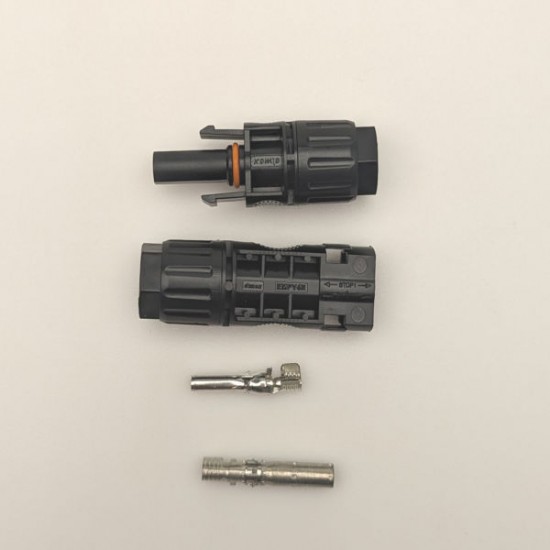

-550x550.jpg "MC4 IP68 PV STRAIGHT SOLAR CONNECTOR(2.5MM/4MM/6MM)")
ELMEX MC4 IP68 SOLAR PV STRAIGHT THROUGH CONNECTOR PER PAIR.
Description
Elmex EMPV4N PV Solar Straight connector with plug & socket design are constructed using flame retardant engineering thermoplastic suitable for exposure to UV rays & for application in PV power generation system.
These connectors incorporate a flexible water tight sealing conforming to IP 68 and are supplied as male plug & female socket type to minimize the chance of wrong connections.
For proper assembly of individual male & female connectors & for proper functioning of the mated pair, it is necessary that solar cables used are TUV certified as per standard 2Pfg 1169/EN 50618.
Efmex straight connectors are certified for PV solar cables 2.5, 4.0, 6.0 mm’ size, double insulated (Insulation plus black/red sheath) & UV protection as UV rays tend to damage the connection.
Specification
TUV Certified
Snap fit locking arrangement
IP 68 Protection when mated
Low contact resistance
Provides UV protection (tested for 500 hrs as per ISO 4892-2
Tested as per International Standards / IEC 62852
Rated Voltage 1500 V DC
Rated Current 25 A(2.5 mm²), 30 A(4.0 mm², 6.0 mm²)
RMS Test Voltage 8 kV (1500 V)
Impulse withstand Voltage 16 kV
Degree of Protection IP 68
Contact Material Copper with Tin Plating
Ambient Temperature -45°C to +85°C
Max. Operating Temp. +110° C
Pollution Degree 3
Contact Resistance < 0.5 mO
Insertion Force = 50 N
Withdrawal Force = 50 N
Locking System Snap In
Product code EMPV4N
Manufacturer Emex
Note:Connectors are suitable for PV Solar Cables of 2.5 mm² / 4.0 mm² / 6.0 mm² diameter (As per 2Pfg 1169/EN 50618).
*Connectors when mated , need a tool to open in accordance with NEC 2014
Any orders below £75 subject to £6.00 carriage
- Stock: 48
- Model: SOLARCONN
- SKU: SOLARCONN
- MPN: EMPV4N
