CLICK SCOLMORE
MD002BN

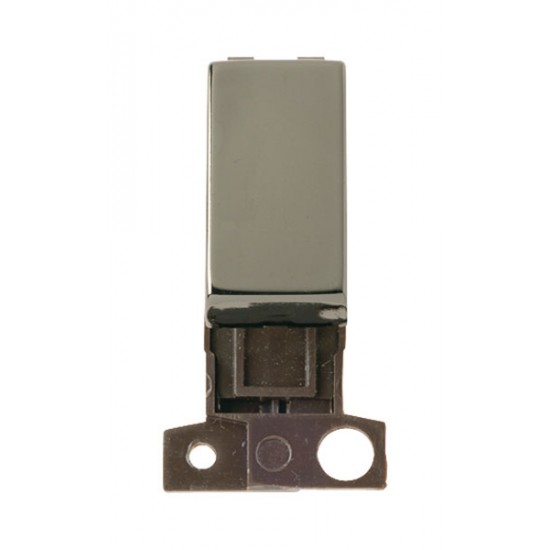

MINIGRID 10AX 2 Way Switch Module Black Nickel
General Information
Dimensions (mm) 25 (W) x 53 (H) x 20 (D)
Finish Black Nickel
Materials Rocker Switch: Urea Rear Housing: Nylon
Switch Cover: Stainless Steel
Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Operating Voltage (AC) 250 Frequency (Hz) 50
Inductive Load Rating (AX) 10
Load Rating Comments Suitable for Fluorescent or Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.5
Terminal Capacity - Solid (mm²) 4 x 1.5 or 2 x 2.5
Modular Rocker Switches Yes
2 Way Switch Yes
Minimum Back Box Depth (mm) 16 (25 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 2-3 Days
- Model: SCOMD002BN
- SKU: SCOMD002BN
- MPN: MD002BN
