CLICK SCOLMORE
MD005WH

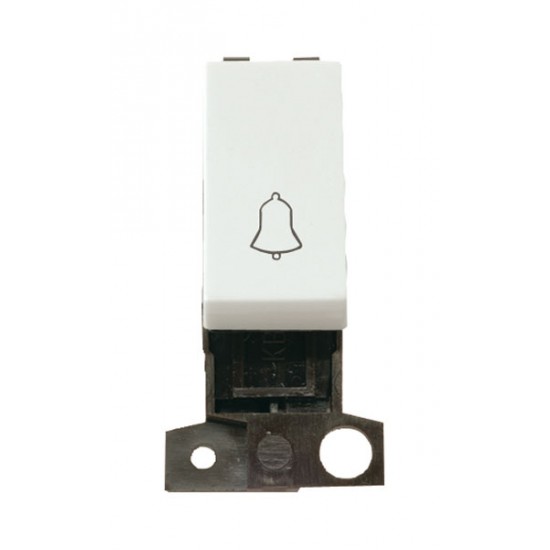

MINIGRID 10AX 1 Way Retractive Switch Module "Bell" Click White
General Information
Dimensions (mm) 25 (W) x 53 (H) x 20 (D)
Colour Click White
Materials Rocker Switch: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Anti Microbial Certified Yes
Operating Voltage (AC) 250 Frequency (Hz) 50
Inductive Load Rating (AX) 10
Load Rating Comments Suitable for Fluorescent or Inductive Loads
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.5
Terminal Capacity - Solid (mm²) 4 x 1.5 or 2 x 2.5
Modular Rocker Switches Yes
1 Way Switch Yes
Retractive Contact Options Press to Make
Product Marking Bell Symbol
Minimum Back Box Depth (mm) 16 (25 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 8
- Model: SCOMD005WH
- SKU: SCOMD005WH
- MPN: MD005WH
