CLICK SCOLMORE
MD017PW

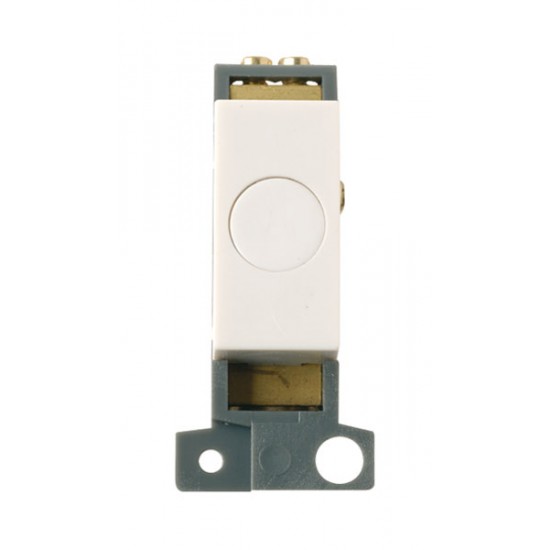

MINIGRID 20A Flex Outlet Module Polar White
General Information
Dimensions (mm) 25 (W) x 56.5 (H) x 30 (D)
Colour Polar White
Insert Colour Polar White
Materials Blank: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Bracket: Mild Steel Cord Grip: Nylon
Screws: Nickel Plated Steel
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 20
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.5
Terminal Capacity - Solid (mm²) 4 x 1.5 or 2 x 2.5
Modular Rocker Switches Yes
Flex Outlet Available Yes
Flex Outlet Location Front of Plate Flex Outlet Dimension (mm) Ø10
Minimum Back Box Depth (mm) 25 (35 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS 5733
Any orders below £75 subject to £6.00 carriage
- Stock: 10
- Model: SCOMD017PW
- SKU: SCOMD017PW
- MPN: MD017PW
