CLICK SCOLMORE
MD022SC

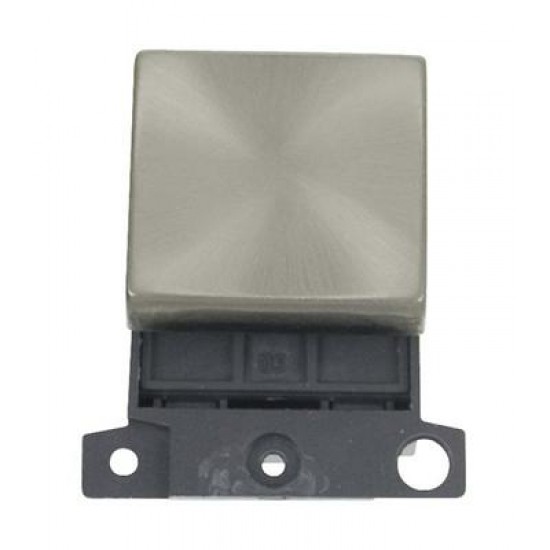

MINIGRID 20A Ingot Double Pole Switch Module Satin Chrome
General Information
Dimensions (mm) 41 (W) x 52.5 (H) x 22 (D)
Finish Satin Chrome
Materials Rocker Switch: Urea Rear Housing: Nylon
Switch Cover: Stainless Steel Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Contacts: Silver “on-lay” Copper / Brass
Internal Busbars: Formed Pressed Brass
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 20
Termination Type Screw
Terminal Size (mm) Ø4.4 Terminal Torque Value (Nm) 1.2
Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
Modular Rocker Switches Yes
Double Pole Switch Yes
Minimum Back Box Depth (mm) 25 (35 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 60669-1
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: SCOMD022SC
- SKU: SCOMD022SC
- MPN: MD022SC
