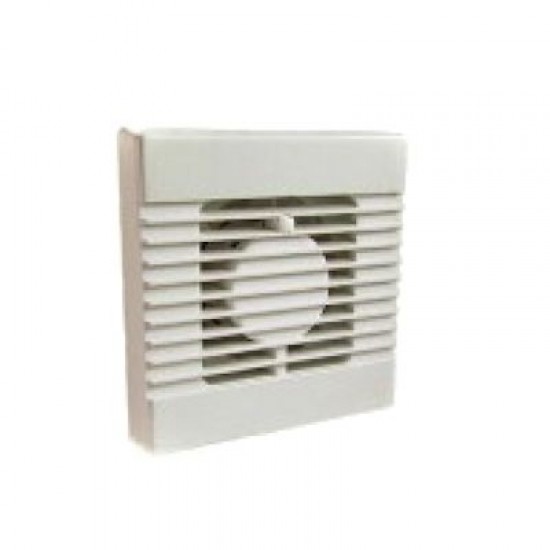

NATIONAL VENTILATION
MER100P 4"
MONSOON 100mm Pull Cord Fan
Wall Mounted
Quiet and efficient, the 100mm (4”) series has an impressive extract rate of 85m³/ hr or 23 litres per hour.
The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
Additional Information
Maximum pressure: 20 p.a.
Fan speed : 2400 r.p.m.
Sound volume : 41.0 dB(A).
Maximum operating temperature: 40°C.
Maximum airflow l/s: 23 (85m3 /hr)
Power consumption (Watts): 15.
Specific Fan Power (W/l/s): 0.65.
IP Rating: IP44
Maximum duct length: 1.5m.
Front Facia: 155mm x 155mm
Facia Depth: 27mm
Spigot Diameter: 98mmø
Spigot Depth: 50mm
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: NATMER100P
- SKU: NATMER100P
- MPN: MER100P
