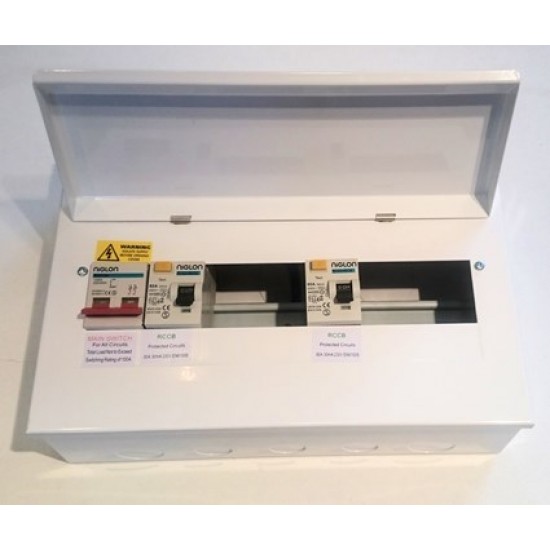

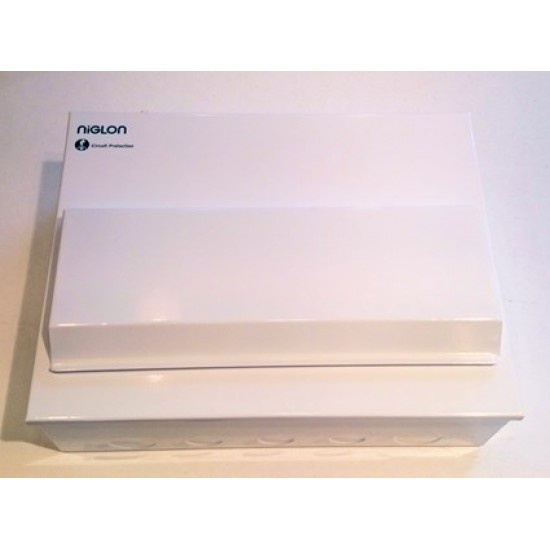

NIGLON M3CU14S/280 Dual RCD Controlled Split Load Consumer Unit.
Niglon M3CU14S/A280 (8 usable ways).
c/w 2 x blank modules.
Dual RCD Controlled Split Load Consumer Unit.
Technical Specifications.
Material Composition Steel (Powder Coated)
Paint Colour RAL 9010
Configurations 4 + 4 100A DP Incomer 2 x 80A 30mA RCDs
No. available ways 4+4
Rated Frequency (fn) 50Hz
IP Rating (Ingress Protection) IP20
IK Rating (Impact Protection) IK05
Maximum Incoming Cable Size 35mm2
Rated Operational Voltage (Un/Ue) 230V
AC Rated Current of Assembly (lnA) 100A
RCD Type Type “A”
Dimensions 237 (H) x 307 (W) x 110mm (D)
Standards
BS7671,
BS EN 61439-3
100A Mains Incomer BS EN 60947-3
Residual Current Devices(RCDs) 80A-30mA (x2) : BS EN 61008-1
Certification Intertek, Semko, VDE, CE, UKCA
Any order’s over £75+vat no carriage
Any orders below £75 subject to £6.00 carriage
£80.87
Ex Tax: £67.40
- Stock: 2-3 Days
- Model: NIGM3CU14S/A280
- SKU: NIGM3CU14S/A280
- MPN: M3CU14S/A280
