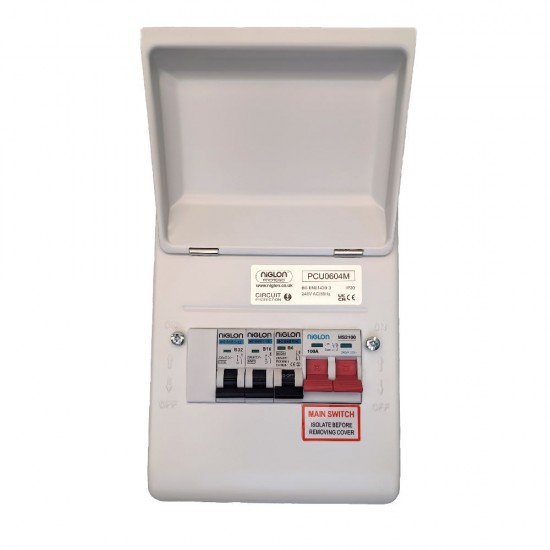

Niglon Protego 6 Module 4 Way 100A Isolator Metal Consumer Unit – PCU0604M C/W 3 X Mcb's(1x6a,1x16a,1x32a)
Part No Description
PCU0604M Protego 6 Modular 4 Way 100A Isolator Metal Consumer Unit
Metal Board: Constructed of 1.2mm Steel, with curved edges
Increased Board Height 260mm: More room for cabling on 10-22 way boards
Variable Knock-Outs: 20+32 on the top and bottom, 40mm on the sides
Short Turn Cover Screws@ Provides easy secure fixing when assembling cover after completion of installation
Comes with accessories: Comes supplied with edging strips & 32mm tail gland
Technical Specifications
Material Composition Steel (Power Coated)
Paint Colour RAL 9010
Configurations 6 Modular 4 Free Ways 100A DP Isolator
Rated Operational Voltage (Un/Ue) 230V AC
Rated Current if Assembley (InA) 100A
Rated Frequency 50Hz
Main Switch Terminal Capacity 35mm²
IP Rating (Ingress Protection) IP20
IK Rating (Impact Protection) IK05
Dimensions 260 (H) x 163 (W) x 110mm (D)
Standards BS7671:2018, BS EN61439-3
100A Mains Isolator Manufactured to EN60947:3
Certification Semko, CE, UKCA
Any orders below £75 subject to £6.00 carriage
- Stock: In Stock
- Model: NIGPCU0604MLD
- SKU: NIGPCU0604MLD
- MPN: PCU0604MLD
