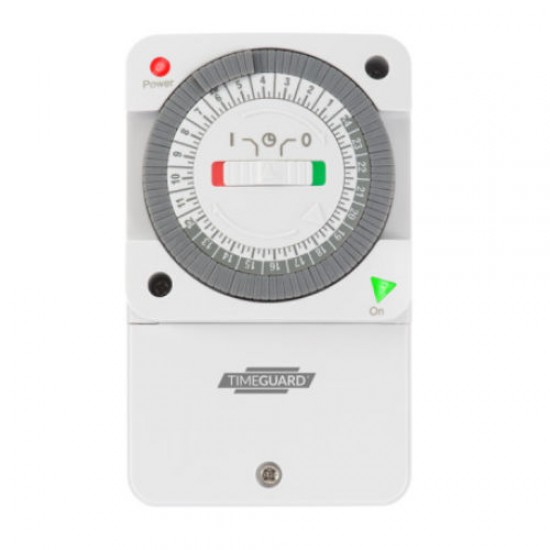

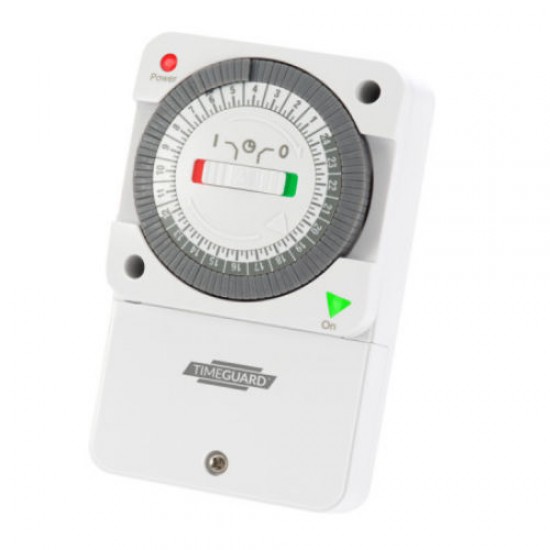

TIMEGUARD NTT05 24 Hour Slimline General Purpose Timeswitch
Features & Benefits
Number Of Channels 1
96 Quick-Set Segments for up to 48 ON/48 OFF Programmes Per 24 Hrs
Red LED ‘Mains ON’ & Green LED ‘Output’ ‘Traffic Light’
Slide Switch for Easy ON (green), Auto (green & red) and OFF (red)
Mode Indication Switches ON & OFF At Preset Times Captive
Segment Dial Permanent ON/OFF Control
Voltage Free Contacts
Operating Voltage 230V AC
Frequency 50Hz
Installation Type Surface Mount
Earth Class Rating Class II
Operating Temperature 0°C – 40 °C
Volt Free Contacts Normally Open, Normally Closed (Changeover)
Ingress Protection Rating IP20
Setting Type Segment
Back Box Minimum Depth (mm) 32
Program Modes 24Hr
Mounting Hole Centres (mm) 90
Standby Consumption <1.43W
Switch Rating 16A Resistive , 750W Halogen/Fluorescent, 100W CFL, 100W LED
Shortest Switching Time 15 Minutes
Programmable Slots 48 ON 48 OFF (96 Segments)
Permanent ON Facility Yes (Slider Switch)
Cable Capacity (mm2) 1.5 - 2.5mm2²Flexible Cable
Cable Entry(s) Back Entry, Bottom Entry
Weight (g) 197

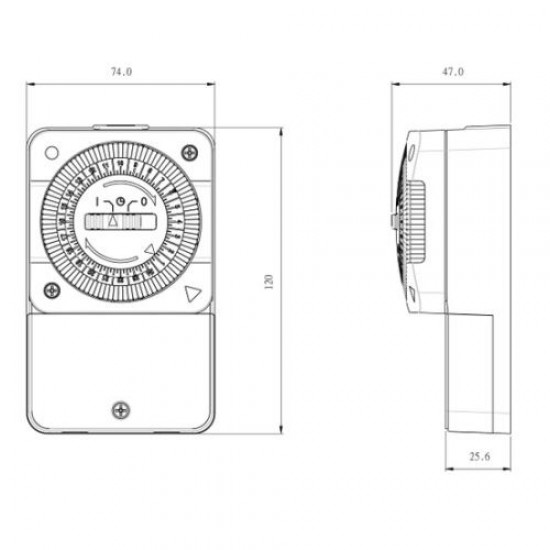

Height 120 x W 74 x D 47 (mm)
Body Construction Polycarbonate
Product Colour White
Guarantee Period 3 Years
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: TIMNTT05
- SKU: TIMNTT05
- MPN: NTT05
