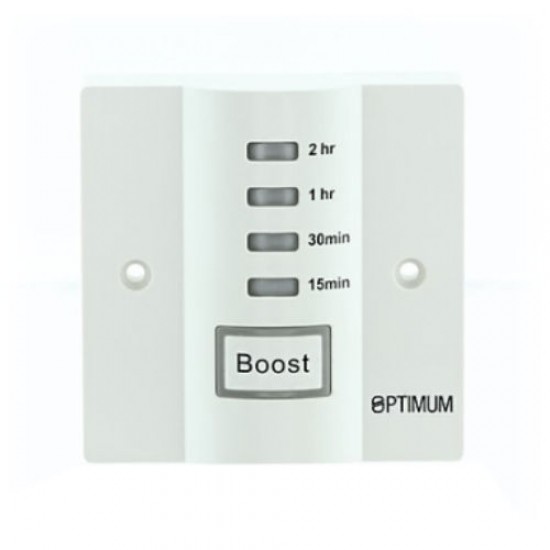

OP-EBT2 IS A ONE-BUTTON BOOST TIMER.
THERE ARE FOUR PRE-SET TIMED OUTPUTS. SUITABLE FOR INSTALLATION ON A SURFACE OR IN-WALL PATTRESS BOX. THE ELECTRONIC TIMER CONTROLS AN INTERNALLY LINKED OUTPUT RELAY, WITH A RESISTIVE RATING OF 16 AMPS. AN EARTH PARK TERMINAL IS PROVIDED. SURFACE-RUN CORD OUTLET WITH CABLE RESTRAINT. PRESS UP TO 4x TO SELECT BOOST OUTPUT, PRESS AGAIN TO CANCEL.
• 2 HOUR ELECTRONIC BOOST TIMER
• SOCKET-BOX MOUNTING
• SELECTABLE BOOST
• VISUAL INDICATOR
• 230V INPUT & OUTPUT
• BOOST SELECTIONS 15 MIN / 30 MIN / 1 HR / 2 HR
• POWER SUPPLY 230V 50Hz
• DIMENSIONS 85x85x30

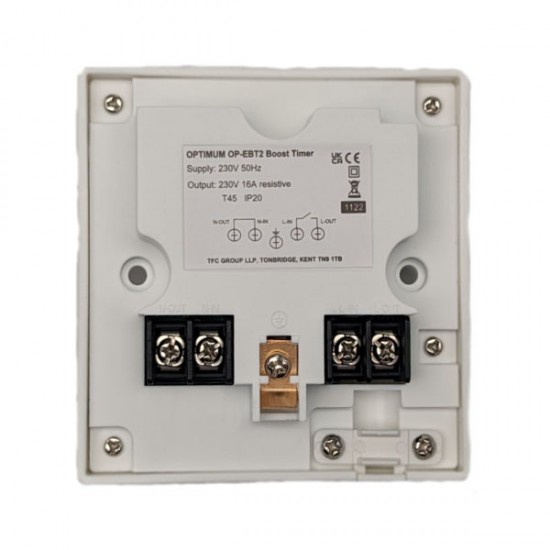

• CONNECTIONS 4 X WIRE-PROTECT SCREW TERMINALS + EARTH PARK
• WEIGHT 150g
• RESISTIVE LOAD 16 AMPERES
• TEMPERATURE RATING -10T45
• ACCURACY QUARTZ REGULATED (typically +/- 1.0s)
Any orders below £75 subject to £6.00 carriage
- Stock: 2-3 Days
- Model: GRAOP-EBT2
- SKU: GRAOP-EBT2
- MPN: OP-EBT2
