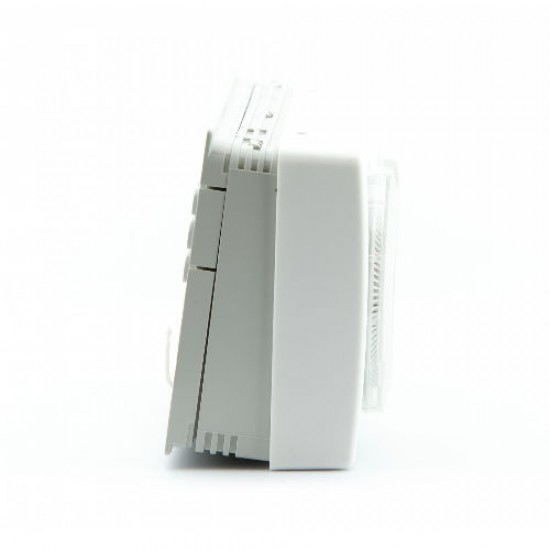

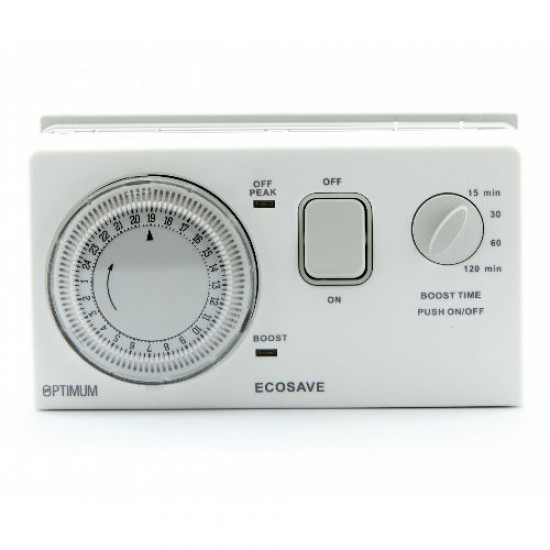

OP-ECOSAVE Immersion Heater / Economy 7 Timer
The Optimum Ecosave is a mechanical 24 hour multi tariff timeswitch used to control 3KW electric immersion heater elements for timing of water heating during low tariff electricity supply periods, and a boost function selectable for 15, 30, 60 or 120 minutes for peak tariff periods. Suitable for use in dry rooms only! Do not install in the vicinity of devices which generate inductive discharges (motors, transformers, etc.)!
• Water heater timeswitch
• Single / dual or twin immersion heater applications
• 15 To 120 minute boost (adjustable)
• Separate wiring base
• Indicator lights display on – peak and boost outputs
• Max Current: 16A resistive / 2A inductive
• Quartz
• 24 hour time control
• Simple programming
• Programmable every 15 minutes
• Manual ON / OFF override
• Running reserve 72 hours
• Surface mounted device which is mounted on walls
• Voltage: 220-240V AC 50Hz
Protection Category: IP20
• Dimensions 55 × 155 × 85 mm
• Ambient working temperature – 10C to 40C
• Complies with European Norm EN 60730-1: 2011 Automatic Electrical Controls for Household and similar use, and European Directives: LVD; EMC; RoHS
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: GRAECOSAVE
- SKU: GRAECOSAVE
- MPN: OP-ECOSAVE
