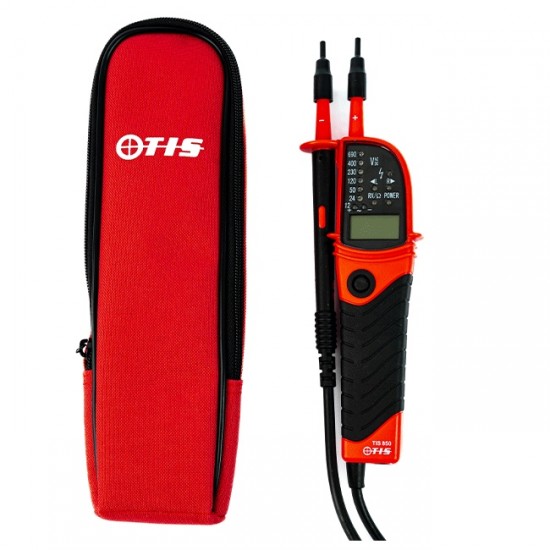

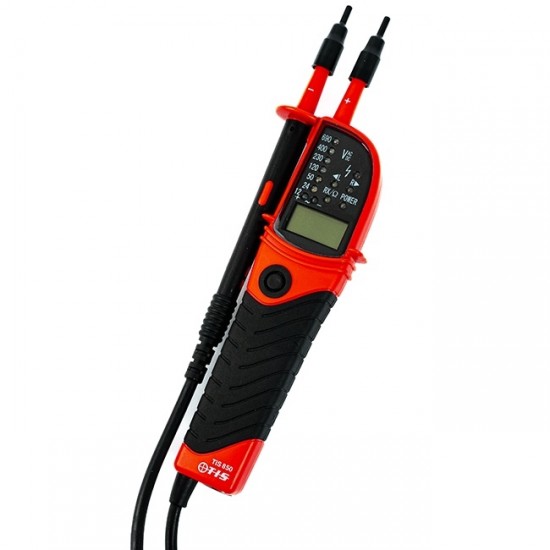

TIS 850 Digital Voltage & Continuity Tester
TIS 850 12V - 690V Digital Voltage & Continuity Tester
SPECIFICATION
• AC/DC Voltage 12V/24V/50V/120V/230V400V/690V ±(3%+3d) or 5V
• Continuity Test 0-1 MO
• Phase Rotation Test 3 Phase 4-wire system AC 50/60Hz
• Phase Range 120±5 degree
• Response Time <2s at 90% of each voltage
• Peak Current <3.5mA (at 690V)
• Internal Battery Consumption Approx 33mA (Battery 3V, measuring 690V AC)
SPECIAL FUNCTIONS
• AC/DC Voltage 0V-690V, LED 12V-690V
• Cat III 1000V, CAT IV 600V
• Will not trip RCD when connected Live to Earth
• Loud Continuity Buzzer
• 2 Pole Phase Rotation Test
• Comply with HSE GS38, 12b
• Conforms fully to BSEN 61243-3: 2014
• LCD and LED voltage indication
• Polarity Test
• Fast Single Handed Testing on 13A Sockets
• Auto Power on/off, torch light & IP64
• Low Battery Warning
• Complete with padded case
• Heavy duty lead
• Rugged rubberised case & grip
• Indicates presence of voltage with dead or missing battery
GENERAL CHARACTERISTICS
Power 1.5V x 2 AA Batteries
Weight 180g
Size 245mm x 70mm x 30mm
Padded Case Supplie
COMPLIANCE
GS 38 Compliant
BSEN 61243-3 2014
EN 61010-1 CAT IV 600V
EN 61010-1 CAT III 1000V
SPECIFICATION
• AC/DC Voltage 12V/24V/50V/120V/230V400V/690V ±(3%+3d) or 5V
• Continuity Test 0-1 MO
• Phase Rotation Test 3 Phase 4-wire system AC 50/60Hz
• Phase Range 120±5 degree
• Response Time <2s at 90% of each voltage
• Peak Current <3.5mA (at 690V)
• Internal Battery Consumption Approx 33mA (Battery 3V, measuring 690V AC)
SPECIAL FUNCTIONS
• AC/DC Voltage 0V-690V, LED 12V-690V
• Cat III 1000V, CAT IV 600V
• Will not trip RCD when connected Live to Earth
• Loud Continuity Buzzer
• 2 Pole Phase Rotation Test
• Comply with HSE GS38, 12b
• Conforms fully to BSEN 61243-3: 2014
• LCD and LED voltage indication
• Polarity Test
• Fast Single Handed Testing on 13A Sockets
• Auto Power on/off, torch light & IP64
• Low Battery Warning
• Complete with padded case
• Heavy duty lead
• Rugged rubberised case & grip
• Indicates presence of voltage with dead or missing battery
GENERAL CHARACTERISTICS
Power 1.5V x 2 AA Batteries
Weight 180g
Size 245mm x 70mm x 30mm
Padded Case Supplie
COMPLIANCE
GS 38 Compliant
BSEN 61243-3 2014
EN 61010-1 CAT IV 600V
EN 61010-1 CAT III 1000V
Any order’s over £75+vat no carriage
Any orders below £75 subject to £6.00 carriage
£40.98
Ex Tax: £34.15
- Stock: 2-3 Days
- Model: TIS850
- SKU: TIS850
- MPN: TIS 850
