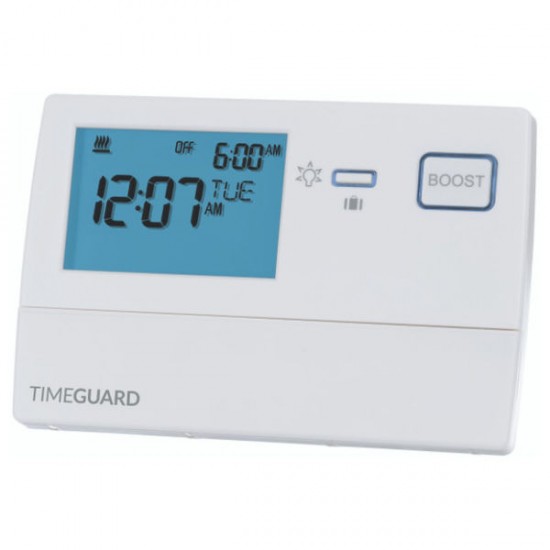

TRT034N 7 Day Digital Programmer – 1 Channel
Features & Benefits
7 day programming for use with room thermostat 3 timed control periods per day (5 day and 2 or 7 day programming).
Programme copy function 1 and 2 and 3 hour boost function
Holiday mode
Always ON and OFF override mode
Blue LED screen illuminates upon setting
Automatic summer and winter changeover
Change over contacts Factory fitted rechargeable battery backup
Operating Voltage 230V AC
Frequency 50Hz
Installation Type Surface
Earth Class Rating Class II
Operating Temperature 0°C – 40 °C
Ingress Protection Rating IP20
Connection 3 Wire
Setting Type Digital
Battery Type 3.6V 20mA Rechargeable
Power Reserve 1 Week (7 Days)
Program Modes 24 Hour/7 Day, Holiday Mode, 1,2 or 3 Hour Boost
Switch Type Single Pole, Double Throw (SPDT)
Mounting Hole Centres (mm) 60
Standby Consumption <8w
Switch Rating 3A Resistive, 1A Inductive
Shortest Switching 1 Minute
Time Programmable 3 ON, 3 OFF
Slots Cable Entry(s) Back Entry
Weight (g) 194.2
H 90 x W 135 x D 30
Body Construction Polycarbonate
Product Colour White
Guarantee Period 3 Years
