VARILIGHT
YT105z

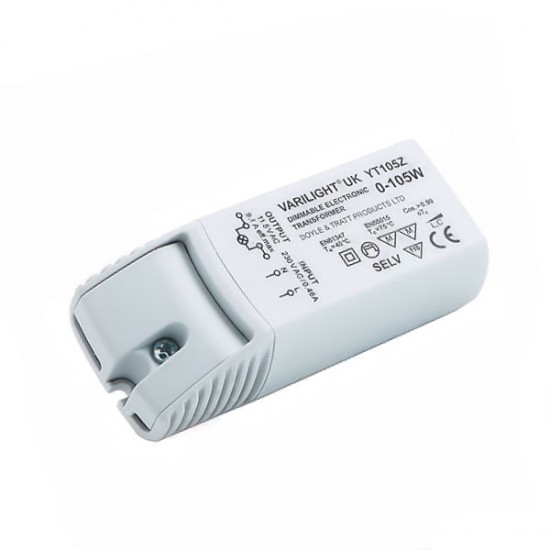

0-105VA Dimmable Low Voltage Lighting Driver (with Terminals)
Soft start gently brings lights up to full brightness when you switch on and extends lamp life
Auto-resetting overload protection and over-temperature
1 x pair of input terminals and 2 x pairs of output terminals
Short circuit protection - IP20
No minimum rating
Dimensions: 108x44x33mm
Net Weight: 123g
Gross Weight: 125g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: 105W
Maximum Current Rating: 230V AC: 0.46A / 11.5V AC: 9.1A
Terminal (Live) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
Terminal (Neutral) Diameter: 2.6mm; Capacity: 2 x 1.5mm²
Applicable Safety Standard: EN 61347-1, EN 61347-2-2, EN 61547, EN 55015 & EN 61000-3-2
Any orders below £75 subject to £6.00 carriage
- Stock: 2
- Model: VARYT105
- SKU: VARYT105
- MPN: YT105Z
