WAGO
2273-202

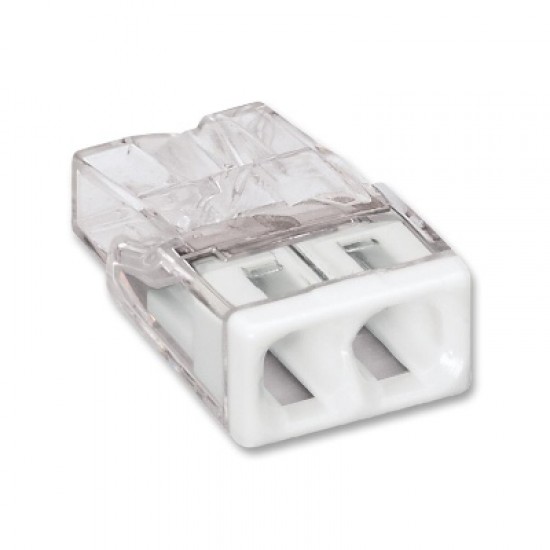

2 Pole PUSH WIRE® splicing connector; for solid conductors; max. 2.5 mm²
Connection of solid conductors from 0.5 to 2.5 mm² (20–16 AWG)
Slim design saves space in tight areas
Tool-free connection thanks to convenient push in technology
Use a mounting carrier for fixed and multi-pole wiring
General Information
Ratings per EN 60664
Overvoltage category II
Nominal voltage 450 V
Rated surge voltage 4 kV
Rated current 24 A
Connection technology PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper / Aluminium
Solid conductor 0.5 … 2.5 mm² / 20 … 16 AWG
Strip length 11 mm / 0.43 inches
Colour transparent
Cover colour transparent
Cover colour white
Material group IIIa
Insulation material (main housing) Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.049MJ
Weight 0.7 g
Continuous operating temperature -60 … +105 °C
Any orders below £75 subject to £6.00 carriage
- Stock: 7

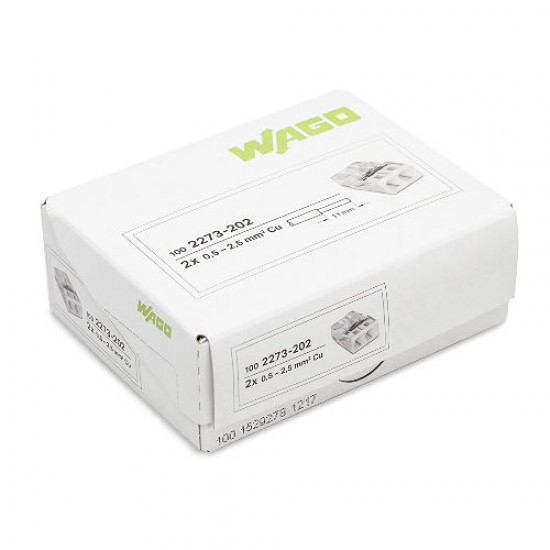

- Model: WAG2273-202-100
- SKU: WAG2273-202-100
- MPN: 2273-202
