WHITECLIFFE

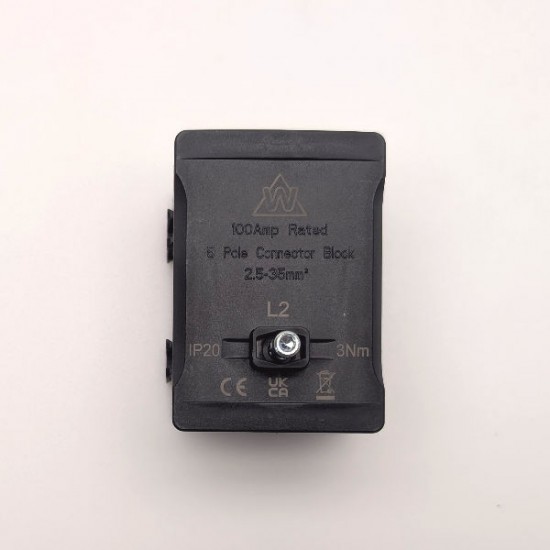

WTB5-BK
100A 5 Way terminal block is designed to accommodate cables ranging from 2.5mm² to 35mm² , making it suitable for a wide
range of applications. Its versatile design allows for easy connection of multiple cables, while its lockable feature and sealable lid
provide added security. It comes with blanking pieces, allowing you to seal off unused connection points, ensuring optimal safety. Its
hexagon screw ensures that the connections are firmly held in place, providing a reliable and stable connection. Ideal for your electrical
connection needs.
5 way 100A rated connector block
Lockable design, can be locked with wire seal
With five connection points, you can easily connect cables
Suitable for 2.5mm² to 35mm² cables
Unique design allows you to join multiple terminal blocks together
Available in 5 colours (brown, grey, black, blue & green)
Hexagon screw providing a reliable and stable connection
Recommended Torque: 3 Nm
Technical data
Part code WTB5-BK
Standard BS 7657:2022
Terminal cable capacity 2.5mm² - 35mm²
Frequency 50Hz
Rated current 100A
Cable entry 3 Holes on the top, 2 Holes on the bottom
Lockable Yes with Wire Seal
Screw type Hexagon screw
Torgue 3 Nm
Compliance Low Voltage Directive 2014/35/EU
Dimensions 50x71x42 (WxHxDmm)
Any orders below £75 subject to £6.00 carriage
- Stock: 6
- Model: WCEDWTB5-BK
- SKU: WCEDWTB5-BK
- MPN: WTB5-BK
