CLICK SCOLMORE
MD047BKSC

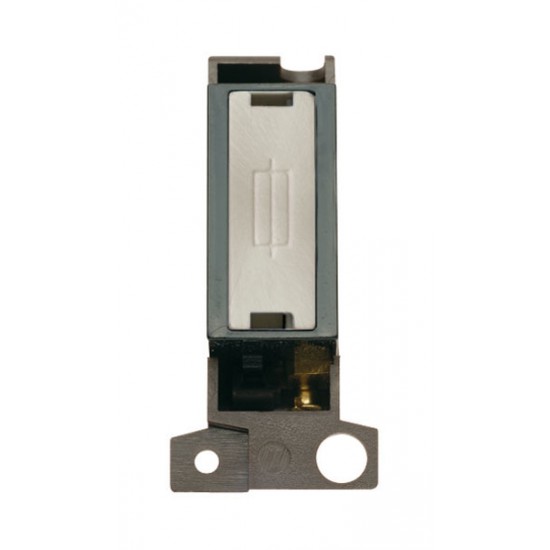

MINIGRID 13A Ingot Fused Connection Module Black/Satin Chrome
General Information
Dimensions (mm) 25 (W) x 57 (H) x 25.2 (D)
Finish Satin Chrome
Insert Colour Black
Materials Cover & Fuse Drawer: Nylon Rear Housing: Nylon
Drawer Cover: Stainless Steel Terminals: Brass
Terminal Screws: Steel & Yellow Passivated Internal Busbars: Formed Pressed Brass
Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 13
Fuse Fitted Type Plug Top Cartridge Fuse
Termination Type Screw
Terminal Size (mm) Ø3.5 Terminal Torque Value (Nm) 0.5
Terminal Capacity - Solid (mm²) 4 x 1.5 or 2 x 2.5
Modular Rocker Switches Yes
Product Marking Fused Symbol
Minimum Back Box Depth (mm) 25 (35 Flat Plate)
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS 5733, BS 1362
Any orders below £75 subject to £6.00 carriage
- Stock: 1
- Model: SCOMD047BKSC
- SKU: SCOMD047BKSC
- MPN: MD047BKSC
