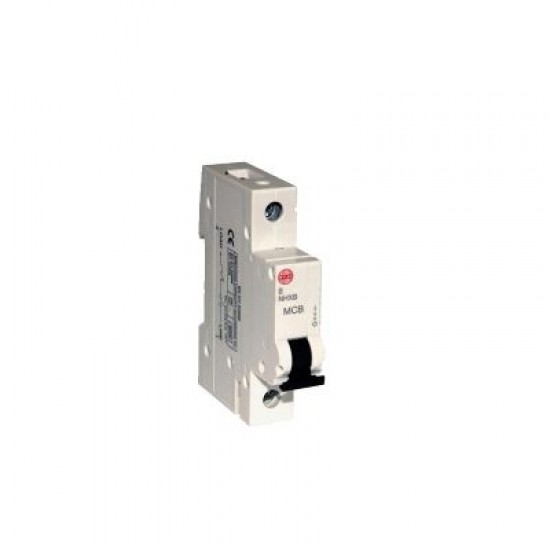

Wylex
NHXLB06
• Single pole MCB, 6A B curve
• Energy limiting Class 3
• Quick release DIN clip
• No miss busbar connection • Fits NM & NMX consumer units
Product Specification Data
Release characteristic B
Number of poles (total) 1
Number of protected poles 1
Rated current 6 A
Rated voltage 230 V
Rated insulation voltage Ui 400 V
Rated impulse withstand voltage Uimp 4 kV
Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA
Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA
Voltage type AC Frequency 50 Hz
Current limiting class 3
Suitable for flush-mounted installation No
Concurrently switching N-neutral No
Over voltage category 3
Additional equipment possible No
Width in number of modular spacings 1
Built-in depth 73 mm
Degree of protection (IP) IP20
Ambient temperature during operating -5 - +40 °C
Connectable conductor cross section multi-wired .75-25 mm²
Product Standard/s
BS EN 60898-1
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: WYLNHXLB06
- SKU: WYLNHXLB06
- MPN: NHXLB06
