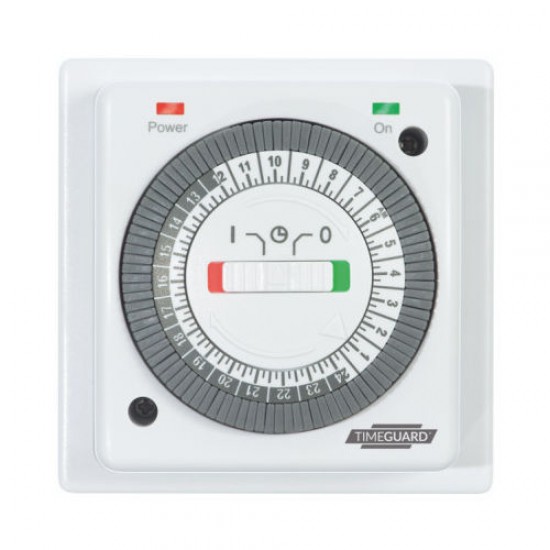

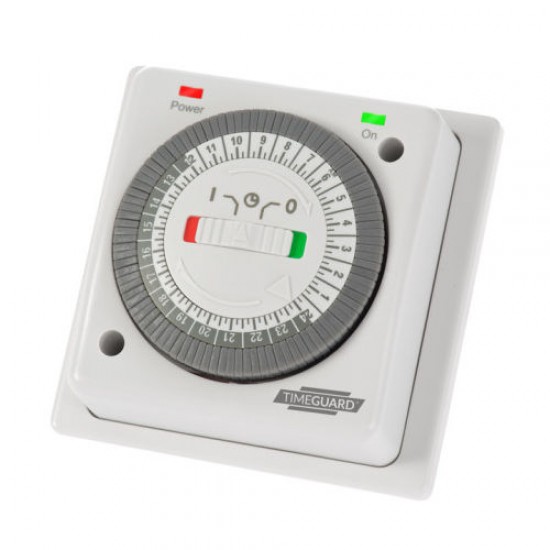

NTT01 24 Hour Compact Immersion Heater Timeswitch
Features & Benefits
Number Of Channels 1
Programmable Slots 48 ON 48 OFF (96 Segments)
96 Quick-Set Segments for up to 48 ON/48 OFF Programmes Per 24 Hrs
Red LED ‘Mains ON’ and Green LED ‘Output’
Indicators For Easy Viewing ‘Traffic Light’
Slide Switch for Easy ON (green), Auto (green & red) and OFF (red) Mode Indication
Switches ON and OFF at Preset Times
Easy to Use Captive Segment Dial
Permanent ON/OFF Control
Fits a Standard Flush or Surface Mount Box min 32mm
Switch Rating 16A Resistive 6A Inductive, 100W LED
Shortest Switching Time 15 Minutes
Permanent ON Facility Yes (Slider Switch)
Operating Voltage: 230V AC
Frequency: 50Hz
Installation Type Surface Mount
Earth Class Rating Class II
Operating Temperature 0°C – 40 °C
Ingress Protection Rating IP20
Setting Type Segment
Program Modes 24Hr
Back Box Minimum Depth (mm) 32
Mounting Hole Centres (mm) 60
Standby Consumption <1.43W
Cable Capacity (mm2) 1.5 - 2.5mm2²Flexible Cable
Cable Entry(s) Back Entry
Weight (g) 160
Body Construction Polycarbonate
Product Colour White

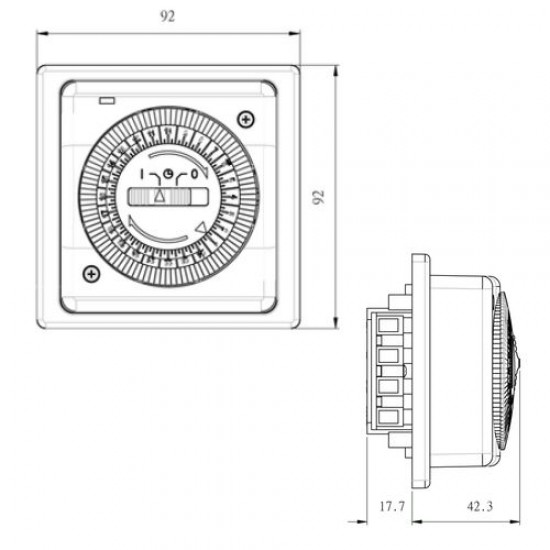

Size:H92 x W92 x D60 (mm)
Guarantee Period 3 Years
Any orders below £75 subject to £6.00 carriage
- Stock: 3
- Model: TIMNTT01
- SKU: TIMNTT01
- MPN: NTT01
