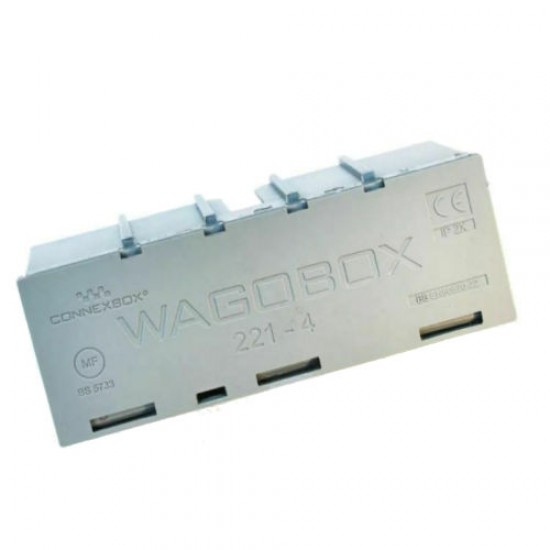

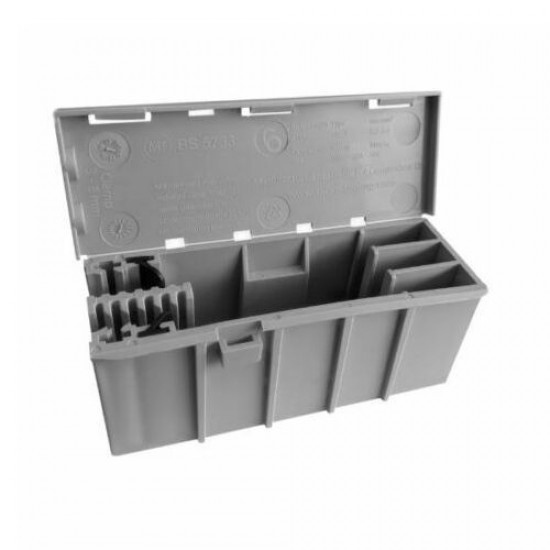

CONNEXBOX
WAGOBOX/221
Junction box is for use with the WAGO 221 and 2273 series connectors.
Connection of solid conductors from 0.5 to 2.5 mm² (20–16 AWG)
Slim design saves space in tight areas
Tool-free connection thanks to convenient push in technology
Use a mounting carrier for fixed and multi-pole wiring
General Information
Installing a WAGOBOX can take as little as 25% of the time it takes to install a screw terminal style junction box.
Cables are cut to size and connected outside the box.
No awkward connections in a small space.
No screws or fiddly clamp bars.
Cables slot into position and are secured in seconds.
Uses simple to fit WAGO 221-412 / 221-413 / 221-415 lever clamp connectors.
Dimensions: 39mm x 44mm x 108mm.
Supports upto 6 cables.
Fits through a 60mm diameter downlighter hole.
Robust cable grippers that can be configured in seconds to grip cables upto 8.00mm in diameter.
Mix and match the WAGO 221 a connectors to suit the job
Complies with BSEN60670-22.
Mounting Fixtures / Lugs / Connectors - Are not included
Any orders below £75 subject to £6.00 carriage
- Stock: 382
- Model: WAGBIPCCJB/221
- SKU: WAGBIPCCJB/221
- MPN: WB2-001-G
