WAGO

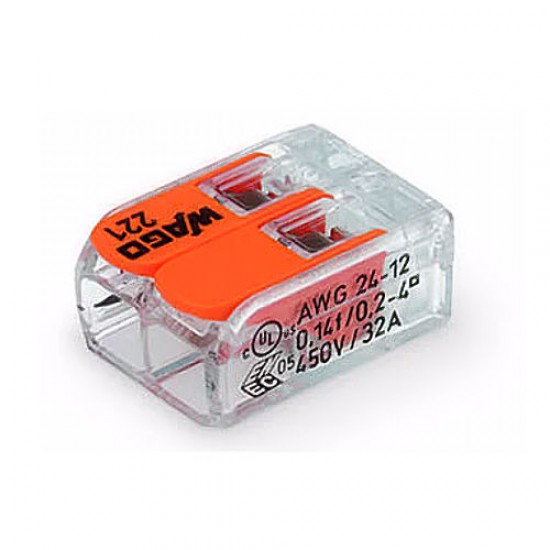

221-412
2 Pole Splicing connector with levers for all conductor types max 4mm²
Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm² (24–16 AWG)
Slim design saves space in tight areas
Tool-free connection and disconnection thanks to convenient lever technology
Use a mounting carrier for fixed and multi-pole wiring
General Information
Ratings per EN 60664
Overvoltage category II
Nominal voltage 450 V
Rated surge voltage 4 kV
Rated current 32 A
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm² / 12 AWG
Solid conductor 0.2 … 4 mm² / 20 … 14 AWG
Stranded conductor 0.2 … 4 mm² / 18 … 14 AWG
Fine-stranded conductor 0.2 … 4 mm² / 18 … 14 AWG
Strip length 11 mm / 0.43 inches
Colour transparent
Cover colour transparent
Material group IIIa
Insulation material (main housing) Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.049MJ
Actuator colour orange
Weight of insulation material 0.84g
Weight 2.3g
Continuous operating temperature -60 … +105 °C
