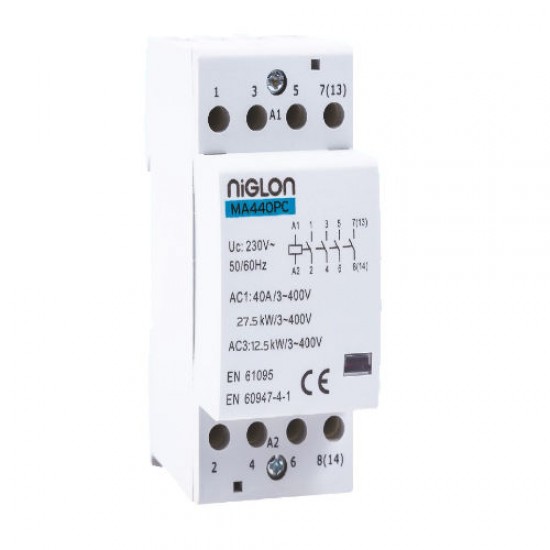

NIGLON MA440PC 4 POLE 40Amp 230V AC DIN MOUNT CONTACTOR
NIGLON MA440PC
4 Pole (AC1 - 20A 415V 4KW) 230V Contactor AC N/O (Normally Open)
Technical Specifications.
Rated current (ln) 40
Rated operational voltage (Ue) 230/400V
Control voltage (Uc) 230VAC
Number of module 3
Rated frequency 50/60Hz
Utilization category AC1
Electrical endurance 150,000 cycles
Mechanical endurance 3,000,000cycles
Rated insulation voltage (Ui) 500VAC
Rated impulse withstand voltage (Uimp) 4KV
Terminals Pillar type Cable termination 16/25mm2
Max Torque of screw 2 Nm
IP degree IP20
Dimensions 85x54x65 Number of poles 4
Standard of Compliance
BS EN 61095 & BS EN 60947-4-1 Certified CE
N.B Contactors should be separated from other components using blank modules.
Any order’s over £75+vat no carriage
Any orders below £75 subject to £6.00 carriage
£37.92
Ex Tax: £31.60
- Stock: 2
- Model: NIGMA440PC
- SKU: NIGMA440PC
- MPN: MA440PC
