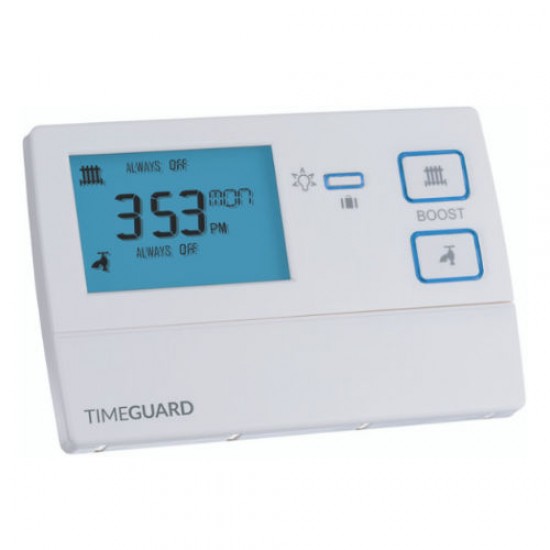

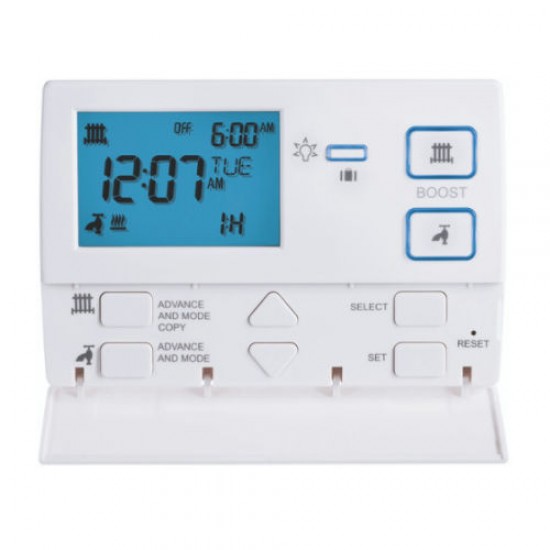

TimeGuard TRT036N 7 Day Digital Heating Programmer – 2 Channel
Features & Benefits
2 independently programmed channels
7 day programming for use with room thermostat
3 timed control periods per day (5 day and 2 or 7 day programming)
Programme copy function, holiday mode & manual ON/OFF
override function
1 and 2 and 3 hour boost function for central heating and hot water
7 day factory fitted rechargeable battery backup Automatic summer/winter changeover
Blue LED screen illuminates upon setting
Change over contacts
Optional pumped or gravity operation set by DIP switches
Operating Voltage 230V AC
Frequency 50Hz
Installation Type Surface
Earth Class Rating Class II
Operating Temperature 0°C – 40 °C
Ingress Protection Rating IP20
Connection 3 Wire
Setting Type Digital
Battery Type 3.6V 20mA Rechargeable
Power Reserve Up to 28 days
Program Modes 24 Hour/7 Day, Holiday Mode, 1,2 or 3 Hour Boost, Pumped/Gravity System Modes
Switch Type Single Pole, Single Throw (SPST) Both Channels
Mounting Hole Centres (mm) 60
Standby Consumption <10w
Switch Rating 3A Resistive, 1A Inductive
Shortest Switching 1 Minute
Time Programmable 3 ON, 3 OFF per channel
Slots Cable Entry(s) Back Entry
Weight (g) 211.7

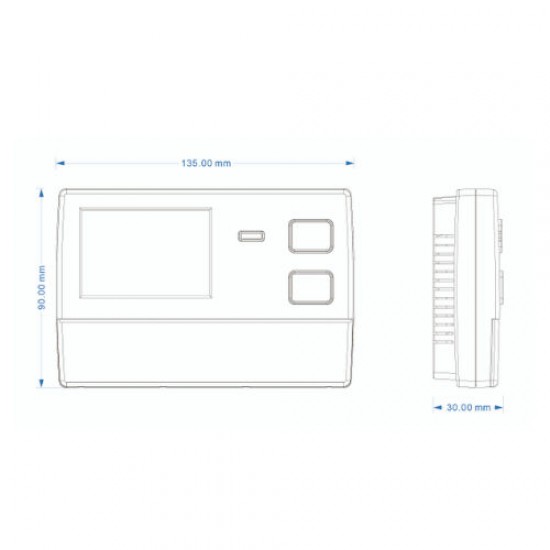

H90 x W135 x D30 (mm)
Body Construction Polycarbonate
Product Colour White
Guarantee Period 3 Years
Any orders below £75 subject to £6.00 carriage
- Stock: 1
- Model: TIMTRT036N
- SKU: TIMTRT036N
- MPN: TRT036N
